Description
CAMPAGNOLO wheelset 28" Gravel Levante Carbon | Freewheel SRAM XDR
Named after a Mediterranean wind, the Levante wheelset is the ideal complement to the Ekar Gravel component group. Engineered for maximum speed, performance and durability, it's stiff enough for fast descents and light enough for brisk climbs.
The newly developed HULC (Handmade Ultra-Light Carbon) rims are specially designed for off-road use. This technology is the result of extensive research in which the use of the carbon fiber binder resin mixture was extensively tested. As a result, a very good compromise between rigidity and low weight has been found. The large inner width of 25 millimeters provides very good support for tires up to 76 mm wide and integrates them aerodynamically into the rim profile. The rim flanges are also designed in such a way that there is an almost seamless, streamlined transition between tire and rim. Nevertheless, small mini-hooks have been retained to keep the tire securely on the rim even at very low air pressures when used tubeless. And thanks to the unperforated rim base, there is no need for additional rim tape.
In order to increase the durability of the entire wheel set, the rims have an asymmetrical cross-section. This enables more even spoke angles, which in turn allows the spoke tension between the drive and non-drive side to be brought closer and distributes the loads more evenly.
All HULC rims are given an incomparably smooth mirror surface, the C-Lux finish, during the production process and therefore no longer require post-processing. This saves costs and also unnecessary ballast due to the lack of paint. The decor was lasered and will inspire you forever. It also makes maintenance easier.
The beautiful hubs are of the same high quality. Also made by Campagnolo, they will accompany you for thousands of kilometers. The modern version as a straight pull variant reduces the risk of broken spokes because the weak point in the bow is eliminated. Longevity is primarily guaranteed by the high-quality cone bearings. They can be readjusted as required, which significantly reduces the maintenance effort. Optionally, they can even be exchanged for the legendary Campagnolo CULT ceramic bearings.
Technical specifications:
Area of intended use : Gravel
Wheel size: 28" (ETRTO: 622 x 25)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: Center Lock
Brake pads: -
Material hubs: aluminum, steel
Material rim: carbon
Inner Width: 25mm
Outer Width: 30.5mm
Rim Height: 30mm
Number of holes: front 24 / rear 24
Spokes: steel spokes round
Lacing pattern: double crossed at the front | crossed twice at the back
Axle standard front: 12x100 mm thru axle type
Axle standard rear: 12x142 mm thru axle type
Front bearing : cone ball bearing, adjustable
Rear bearing : cone ball bearing, adjustable
Freewheel Compatibility: 12-speed SRAM XDR, 12-speed SRAM XD only with enclosed spacer
Freewheel Type: Pawl Freewheel
tubeless capable: yes
recommended tire width: 38 - 76 mm
max. air pressure: 38 mm (with tube : 5.5 bar, tubeless: 4.1 bar), 76 mm (with tube : 2 bar, tubeless: 1.7 bar)
Maximum system weight: 120 kg (rider, bike, clothing and possibly luggage)
Valve hole: 7 mm Ø
Color rims / finish: black UD gloss
Color decor: grey
Color hubs: black matt
Weight according to the manufacturer: 1458g

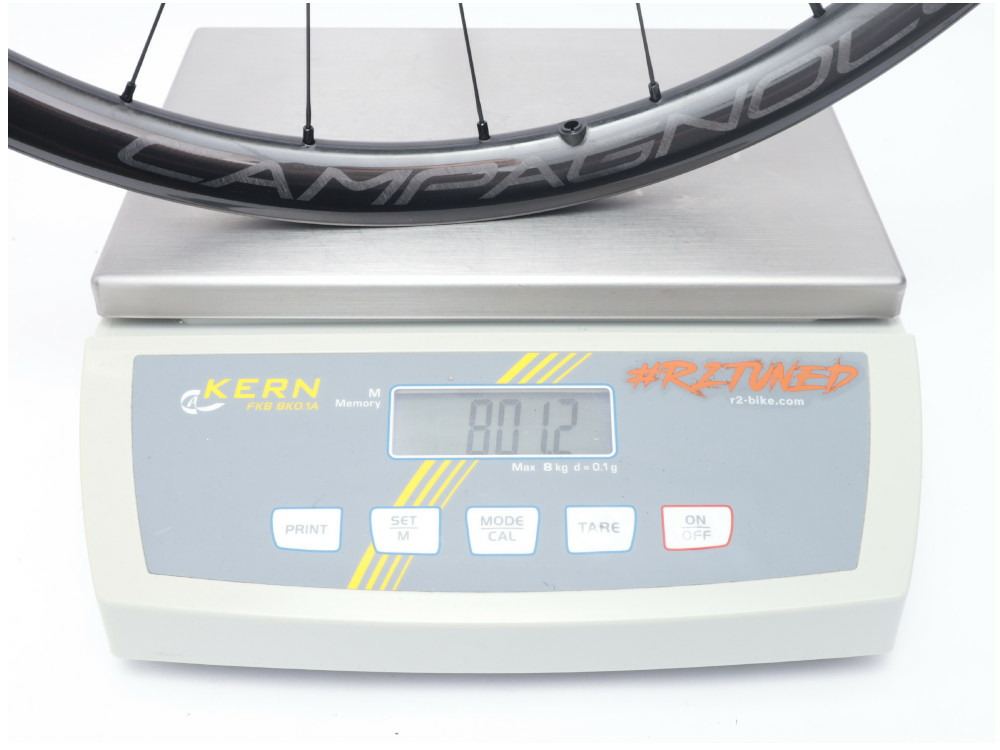

Weight weighed: 703g (front wheel), 801g (rear wheel), 1504g (set)
Scope of delivery:
1x Levante front wheel
1x Levante rear wheel
2x wheel bag
2x tubeless valve
2x tire levers
1x spacer for XD cassettes
operation manual
Note: Contrary to the illustration, the wheelset is delivered with a SRAM XDR freewheel body.
