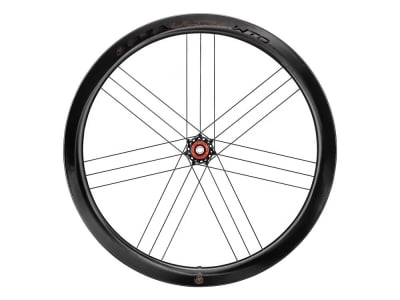

CAMPAGNOLO Wheelset 28" Bora Ultra WTO 45 DB 2WF C23 | Shimano HG11

Description
PDF (1)

CAMPAGNOLO wheelset Bora Ultra WTO 45 DB 2WF C23

The medium profile carbon wheelset is the epitome of elegance and an Italian masterpiece. Experience a perfect balance of speed, maneuverability and stability. The best choice for anyone looking for an all-rounder.

Thanks to their innovative design and an exclusive manufacturing process, the wheels are particularly light with maximum aerodynamics. The self-locking aluminum nipples are completely concealed in the rim profile and offer the wind no surface to attack. The profile of the rim is drop-shaped and significantly reduces overall drag. The closed rim base improves rigidity and makes the rim extremely fast. With an inner width of 23 millimetres, the Bora Ultra wheelset underlines its versatility. The iconic G3 spoking gives the wheels a unique look that clearly identifies them as a Campagnolo product. Ultralight hubs with ceramic bearings round off the wheels perfectly. They have a center-lock brake rotor mount and are equipped with a patented Campagnolo freehub. Thanks to different freehub bodies, the wheelset is also compatible with SRAM or Shimano drivetrains.

Each wheel is handcrafted by a Campagnolo specialist in Italy and trimmed to perfection using electronically controlled instruments. This process guarantees maximum performance and reliability.

2-Way-Fit (2WF)
Thanks to the closed 2WF rim profile, the Bora Ultra WTO wheels are suitable for tubeless use without the need to fit rim tape. However, they can also be ridden conventionally with a tube.

H.U.L.C. Carbon
The Bora Ultra WTO wheels are made from the special handmade and ultra-light H.U.L.C. carbon fibers. In combination with the C-LUX finish, which does not require painting, and the newly developed hubs, the wheels are over 100 grams lighter than the previous version.

Campagnolo ULTRA
Ultra versions from Campagnolo embody the ultimate in Italian engineering - for demanding athletes with the highest efficiency requirements and perfectionists who are looking for that decisive plus with every ride. High-quality materials, masterful workmanship and an uncompromising focus on performance ensure a more direct ride feel, maximum propulsion and superior control. Those who opt for the Ultra version are not simply choosing a component, but a statement: more lightness, more dynamics, more enjoyment on two wheels.

Technical data

Area of application: Road
Wheel size: 28" (ETRTO: 622 x 23)
Rim type: Clincher (clincher and folding tires)
Brake type: Disc brake
Brake disc mount: Center Lock
Hub material: Carbon (front hub), aluminum (rear hub)
Rim material: Carbon
Spokes material: Stainless steel
Inner width: 23 mm
Outer width: 28.4 mm
Rim height: 45 mm
Number of holes: 21
Spokes: Stainless steel spokes, elliptical cross-section, 1.5 mm
Lacing pattern: iconic G3 lacing
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearings: Campagnolo CULT ceramic bearings
Rear bearing: Campagnolo CULT ceramic bearings
Freewheel: Campagnolo N3W, SRAM XDR, Shimano HG11
Freewheel type: pawl freewheel
tubeless compatible: yes
recommended tire width: 28 mm to 35 mm
max. air pressure: 28 mm - 7 bar, 35 mm - 5.8 bar
max. air pressure tubeless: 28 mm - 6.3 bar, 35 mm - 4.5 bar
maximum system weight: n.a.
Valve hole: 7 mm Ø
Color rims: black
Finish rims: glossy
Color hubs: black
Finish hubs: glossy

Weight according to manufacturer: 1325g
Weight self-weighed: 1377g

Scope of delivery:

1x Campagnolo Bora Ultra WTO 45 DB 2WF C23 rear wheel
1x Campagnolo Bora Ultra WTO 45 DB 2WF C23 front wheel
2x Campagnolo wheel bags
1x Campagnolo accessory bag
2x Tubeless Vertile
2x tire levers
1x nipple care set
1x user manual
