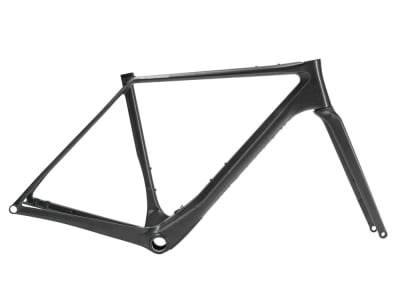

BIKE AHEAD COMPOSITES Gravel frameset "THE SUPERFAST" | Pressfit BB86
If you are looking for a gravel bike that is uncompromisingly focused on speed, precision and individual fit, you will find it with THE SUPERFAST. This race-oriented carbon bike combines an ultra-light design, impressive stability and exceptional comfort into a performance concept that gives you noticeably more speed and propulsion on all sections of the route.
The frame, fork and optional cockpit are made from a state-of-the-art one-piece monocoque construction. This means that all carbon fibers are processed in one piece and form an extremely stiff, strong and lightweight structure. This elaborate manufacturing process results in clean transitions, optimum power transmission and precise, controlled handling, even when you really let it rip. The fully integrated cable routing ensures a tidy front end and reliably protects cables from dirt and moisture. The cables run invisibly through the handlebars and stem directly into the frame and fork. The result is a very clean design with minimal exposure to wind and weather. THE SUPERFAST sets new standards in terms of weight. Just over 800 g is a direct challenge to the competition. In combination with carefully selected components, it is easy to create a complete bike that is right at the top of the race category. The absence of a layer of paint further reduces the weight and gives the finely structured carbon surface an elegant, matt finish. With a tire clearance of up to 50 mm, you are ideally prepared for fast gravel passages, challenging trails and long distances.
The optional, integrated cockpit can be configured in almost any combination of handlebar width, stem length and drop so that you can find the exact riding position that suits your riding style. The frame, fork and cockpit are designed as a technical unit. The components are perfectly matched and also blend together visually. You also decide which frame configuration forms the optimum basis for your dream setup. You can choose between a threaded T47 bottom bracket and a particularly precise press-fit version. The bike can also be ridden with either a single drivetrain or a front derailleur. The patented base, together with the optionally available adapter, enables both options without any visual or technical disadvantages. The frame is rounded off by a UDH derailleur hanger, which is compatible with modern rear derailleurs and protects the "SUPERFAST" from damage in the event of a fall or contact with a branch.
A special feature of this frame, however, is the unique, integrated storage compartment above the bottom bracket area. It is waterproof and removable. It also includes a mini tool, a CO2 pump and a spare tube.
Each frameset is manufactured entirely in Germany, from the first carbon fiber to the final product. This in-house production guarantees maximum precision and long-lasting quality that you can rely on at all times - regardless of the pace and terrain.
Technical data
Area of application: Gravel
Frame sizes: M, L
Frame material: UD carbon, monocoque construction
Material fork: UD carbon, monocoque construction
Wheel size: 28"
Head tube: fully integrated IS 52 / IS 52 | 1 1/8" - 1.5" tapered (headset included)
Seat tube (inner diameter): 27.2 mm
Seat tube (outer diameter): approx. 32.5 mm
Bottom bracket standard: Pressfit BB86 (Ø 41 x 86.5 mm)
Axle standard fork: 12 x 100 mm thru axle
Axle standard frame: 12 x 142 mm thru axle
Front disc brake mount: Flatmount
Rear disc brake mount: Flatmount
max. brake disk size: n.a.
Gear type: only compatible with electronic groupsets, UDH mount
Front derailleur mount: optionally available
Cable routing: internal
max. total weight: 100 kg (rider incl. clothing and any luggage)
Maximum tire width: 50 mm
Feature: UDH mount, attachment option for bag on top tube, storage compartment above bottom bracket
Color: carbon black, satin finish
Weight according to manufacturer: 789g (frame, size M, Pressfit BB86), 388g (fork)
Weight weighed: 944g (frame with storage compartment, size L, Pressfit BB86), 375g (fork)
Scope of delivery:
1x Bike Ahead Composites frame "THE SUPERFAST" | Pressfit BB86 incl. fork
1 pair of thru axles
1x headset
1x expander
1x Headset Cover
1x spacer set
1x seat clamp
1x UDH derailleur hanger
1x frame protection sticker
1x storybook with the history of "THE SUPERFAST"
1x storage compartment with mini tool, CO2 pump and hose
