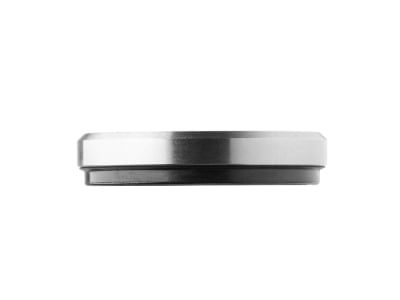

ACROS headset lower part | IS60/40 11/2"
From the tranquil town of Renningen, in the green state of Baden Württemberg, straight to your bike! Behind Acros is a group of passionate cyclists and engineers. Their motto: ride more, worry less.
Typical of Acros, this headset lower part also uses a high-quality double-sealed stainless steel angular contact ball bearing, which is filled with optimized headset grease. The two sealing washers with double lip seal keep the grease safely inside the bearing and protect it from moisture and dirt. This is an IS version (Integrated System) with an outer diameter of 60 mm. The bearing is completed with a fork cone with a vulcanized seal to protect the bearing from this side as well. This guarantees a long service life despite minimal maintenance.
Technical data:
Material: Stainless steel, aluminum
Type: IS (integrated)
Fork steerer: 11/2" (bottom)
S.H.I.S.: IS60/40
Press-in dimension Ø: 60 mm
Bottom offset: 8 mm
Bottom bearing seat: 45°
Outer diameter bottom: 60 mm
Overall height: n.a.
Bearing: Stainless steel - angular contact ball bearing, double sealed
Color: silver
Weight according to manufacturer: n/a
Weight self-weighed: 67g
Scope of delivery:
1x headset lower part | IS60/40 11/2"
1x centering ring with vulcanized seal
