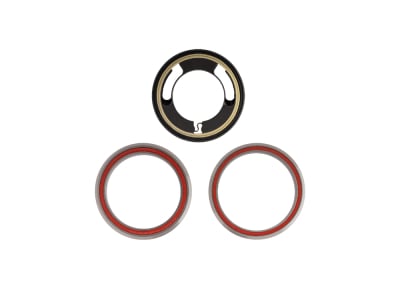

ACROS Headset Bearing Set ICR | IS52/28.6 | IS52/40 1 1/8" - 1 1/2" | 56.52.920R1 | integrated cable routing

Description

ACROS headset bearing set ICR | IS52/28.6 | IS52/40 1 1/8" - 1 1/2" | 56.52.920R1 | integrated cable routing

From the tranquil town of Renningen, in the green state of Baden Württemberg, straight to your bike! Behind Acros is a group of passionate cyclists and engineers. Their motto: ride more, worry less.

With this headset, you can route the shift and brake lines through the frame for a clean look. The abbreviation "ICR" stands for Integrated Cable Routing and allows the cables to be hidden in the frame. This replacement bearing set for fully integrated headsets typically consists of two high-quality double-sealed stainless steel angular contact ball bearings, which are filled with optimized headset grease. The two sealing washers with double lip seal keep the grease safely inside the bearings and protect it from moisture and dirt. It is an IS version (Integrated System) with an outer diameter of 52 mm at the top and 52 mm at the bottom, which is used especially for Orbea Avant (2022-2024), Cannondale Scalpel (from 2024, without Lefty), Cannondale Moterra SI (2024).

Technical data:

Material: Stainless steel, plastic
Construction: IS (integrated)
Steerer tube: tapered 1 1/8" to 1 1/2"
S.H.I.S. top part: IS52/28.6
S.H.I.S. lower part: IS52/40
Press-in dimension top Ø: 52 mm
Top offset: 7 mm
Press-in dimension bottom Ø: 52 mm
Offset bottom: 7 mm
Bearing seat top: 45°
Bearing seat bottom: 45°
Outer diameter top: 52 mm
Outer diameter bottom: 52 mm
Overall height top: n/a
Overall height bottom: n.a.
Bearing: Stainless steel - angular contact ball bearing, double sealed
Color: silver

Weight according to manufacturer: n/a
Weight self-weighed: 69g

Scope of delivery:

1x ACROS headset upper part ICR | IS52/28.6 1 1/8" | integrated cable guide (incl. centering ring, metal-reinforced seal and ICR cable guide)
1x ACROS headset bearing IS52/40 1 1/2"
1x headset grease 5g
1x instructions and product information
