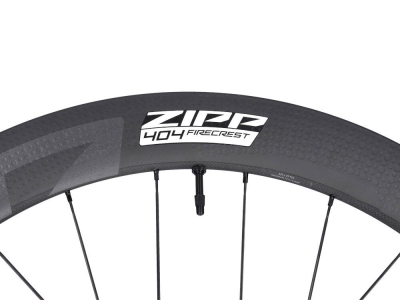

ZIPP rear wheel 28" 404 Firecrest Carbon Clincher | Tubeless | Center Lock | 12x142 mm thru axle | Shimano Road freehub body
With a profile height of 58 millimeters, the Zipp 404 wheels have been the right choice for road races, time trials or fast tours in varied terrain for decades. Equipped with the latest technologies, the current generation is ready for use on modern road bikes and seamlessly continues this legacy. At 23 millimetres, the inner rim width has increased significantly compared to its predecessors. As a result, the rims not only offer wider tires optimum support at low air pressures, they also integrate the tires into the rim profile in an extremely aerodynamically efficient manner. In addition, the hookless design creates an almost seamless transition between the tire and rim flanks. The elimination of the hooks also makes the rim flanges more robust in the event of punctures and contributes to the significant weight saving compared to the previous versions. In combination with further optimizations in the structure of the carbon layers, the weight of the wheelset has been reduced to 1559 grams. An optimized rim bed ensures easier tire mounting.
Total System Efficiency (TSE)
The 404 wheels were developed using the TSE approach. The development goal was to find the best possible wheel design to overcome the speed barriers that exist under realistic riding conditions. These include wind resistance, gravity and rolling resistance as well as vibration losses in poor road conditions.
ABLC Dimples
The ABLC dimples (dimples on the outside of the rim) help to reduce air resistance and ensure very high crosswind stability, especially at larger angles of attack.
Zipp ZR1 hubs
The Zipp ZR1 hubs were developed in two years of development work in Germany. Their outstanding feature is the extremely fine-toothed freehub body design of the rear hub with 66 engagement points per wheel revolution, which allows the ZR1 to respond to acceleration without delay. The fine toothing is realized via a system of 6 pawls, 3 of which engage in an offset manner. The design of the seals is based on the high-end Cognition hubs and provides more protection and durability with a larger dust cap behind the freehub body and better seals.
Zipp Lifetime Warranty
Zipp grants you a lifetime warranty on your Zipp wheel when used properly. The warranty also covers racing use and damage caused by riding errors as long as the wheel has been used for its intended purpose. The warranty is only valid for the original purchaser and proof of purchase is mandatory!
NOTE: Due to the hookless profile, the Zipp 404 wheels are only suitable for use with ETRTO-compliant tubeless tires. However, the corresponding tubeless tires can be ridden on the wheels with a tube without any problems. You can find an overview of all compatible tires for your Zipp hookless wheel here.
Technical data:
Area of use: road bike, time trial, triathlon, gravel
Wheel size: 28" (ETRTO: 23-622)
Rim type: carbon clincher (only for tubeless tires)
Brake type: only for disc brakes
Brake disc mount: Center Lock
Material: carbon, aluminum
Inner width: 23 mm
Outer width: 28 mm
Rim height: 58 mm
Number of holes: 24 holes
Axle standard: 12x142 mm thru axle
Bearings: 4x industrial bearings
Freehub compatibility: Shimano 11-speed Road
Freehub type: 6x pawls, 66 engagement points
Spokes: 24x J-Bend CX-Ray Aero spokes
tubeless compatible: yes
recommended tire width: 28-35 mm
maximum tire pressure: 5 bar (73 psi)
maximum system weight: 115 kg
Finish: UD Carbon matt
Color: black
Weight according to manufacturer: 1559g (wheelset)
Weight self-weighed: 851g (SRAM XDR version including tubeless tape and tubeless valve)
Scope of delivery:
1x rear wheel Zipp 404 Firecrest Carbon Clincher | Shimano Road freehub body
1x tubeless rim tape
1x tubeless valve
1x Center Lock end ring
Modell ID:
WH-404-FTLD-B1
