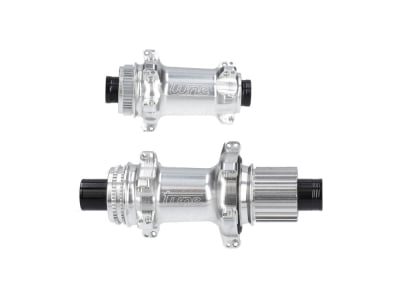

TUNE hub set Nano CL Center Lock | 12x100 mm / 12x142 mm | Standard Bearings | Freewheel Shimano Micro Spline | silver
As usual with Tune, the new Nano CL hubs are CNC-milled from 7075 aluminum. The special feature of the front hub is a new hub flange that does not require a carbon ring. The symmetrical design ensures optimum balance of the front wheel. The POEtry69 freehub mechanism keeps play to a minimum when starting off, so that direct power transmission is possible. The straightpull lacing makes it possible to create an extremely stiff wheel and the tensile forces of the spokes are transmitted in a material-appropriate manner. In addition, the absence of the spoke bend eliminates the weak point of the spokes and guarantees a durable wheelset.
Like all Tune hubs, the Nano CL is produced, milled and assembled entirely in the Black Forest.
We will be happy to provide you with a quote for a complete custom wheelset with rims and spokes of your choice. Just send us an e-mail to [email protected]!
Technical specifications front hub:
Application: Road, Gravel, Cyclocross
Material: Aluminum
Axle standard: 12x100 mm thru axle
Number of holes: 24
Brake rotor mount: Center Lock
Bearings: 2 x ball bearings ABEC5 17x26x5 (Standard Bearings)
Spoke type: Straightpull (straight)
max. permissible spoke tension: 1100N
maximum system weight: 110 kg (rider, bike, clothing and possibly luggage)
maximum rider weight: 100 kg
Color: silver
Weight according to manufacturer: from 93g
Weight weighed: 91g
Technical specifications rear hub:
Application: Road, Gravel, Cyclocross
Hub material: Aluminum, steel (pawls)
Freehub body material: Aluminum
Axle standard: 12x142 mm thru axle
Number of holes: 24
Brake rotor mount: Center Lock
Freehub compatibility: 12-speed Shimano Micro Spline
Freehub type: 3 pawls, toothed ring with 69 teeth
Bearings: 4x industrial bearings (2x 61803-2RS, 1x 61903-2RS, 1x61803-full ball)
Spoke type: Straightpull (straight)
max. permissible spoke tension: 1100N
maximum system weight: 115 kg (rider, bike, clothing and possibly luggage)
maximum rider weight: 100 kg
Color: silver
Weight according to manufacturer: from 197g
Weight weighed: 203g
Weight of hub set according to manufacturer: 290g
Weight hub set weighed: 294g
Scope of delivery:
1x TUNE front hub Nano CL
1x TUNE rear hub Nano CL
MPN:
Hubset.NaCl.24.12.12.BeaStd.MS.POE69.silver
