THM CARBONES crank Clavicula SE Road Powermeter LK 130 2-fold

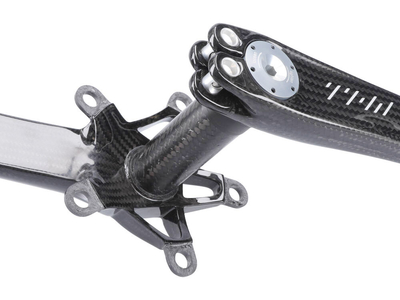

With a weight of only 329 grams, THM Carbones brings with the Clavicula SE power meter by far the lightest power measurement crank on the market. The basis is the proven, ultra-light Clavicula SE crank arms with an integrated carbon shaft. In the connection between crank arms and crankshaft, THM-Carbones is the only manufacturer who successfully uses a carbon-carbon connection. Due to the identical fiber structure of the external toothing of the shaft and the internal toothing of the crank arm, the relative movements between the teeth could be minimized. As a result, there is practically no wear and tear and there is no possibility of noise development at this point. The spider for the chainring mount is also made of carbon laminated to the crank arm. This leads to extreme lateral stiffness, for optimal switching behavior and excellent stiffness in the circumferential direction, for loss-free power transmission.
By integrating strain gauges and a small electronic unit in the crankshaft, the additional weight of the power meter unit is only 27 grams. The total power is calculated by measuring the power of the left leg, similar to other established one-sided power measurement systems. Since the performance deviations between the legs in all relevant performance areas are negligible in practice (apart from exceptional anatomical features), one-sided performance measurement systems are ideally suited for training control. In addition to power measurement, the power meter can measure cadence, torque effectiveness and pedal smoothness (left side). The values can be transmitted via ANT + or Bluetooth LE to all devices compatible with these transmission protocols. Firmware updates and settings can be made using the ZWATT smartphone app. The system is powered by a rechargeable lithium-ion battery. In order to be prepared for all weather conditions, the power meter is waterproof according to the IP67 standard.
intended use : racing bike, triathlon, gravel
Material crank arms: carbon
Material spider: carbon
Material crankshaft: carbon
Crankshaft diameter: 30 mm
Crank lengths: 170 mm / 172.5 mm / 175 mm
bolt circle diameter diameter: 130 mm
Chainring gradation: -
Chainring Bolts: -
chain line : 43.5 mm
Q factor: 148 mm
Inner width: 118 mm max.
Compatibility bottom bracket: BB30, Pressfit30, BBRight (optional, not included)
Driver weight: max. 120 kg
Power measurement system: Sensitivus module in crankshaft (measures left leg)
Measurement data: power, cadence, torque effectiveness, pedal smoothness (left side)
Measurement accuracy: +/- 2%
Power range: 0 - 1999W

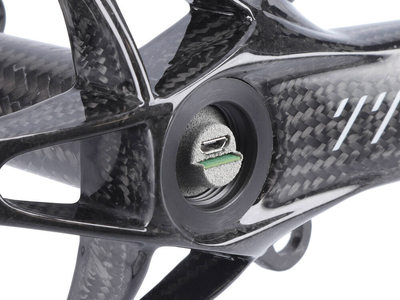

Battery: integrated, rechargeable Li-ion battery
Battery life: approx. 150 hours
Transmission standard: ANT +, Bluetooth LE
Firmware updates: via Team ZWATT Power Meter app
Water resistance: yes (IP67)
Finish: 3K carbon matt or glossy
Weight according to the manufacturer: 329g (without bottom bracket / chainrings)
Weight weighed: n / a

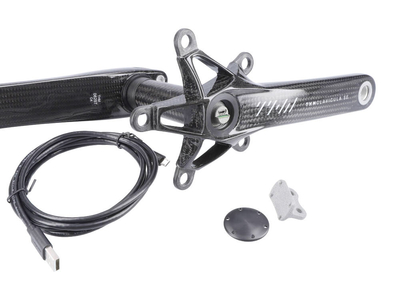

Scope of delivery: 1x crank including power meter without bottom bracket / chainrings!
