SON Hub Dynamo SON 28 15 150 disc | 15x150 mm Thru Axle Fatbike

Item number:
23005
Product weight:
530 g
Manufacturers:

349,00 €
Finanzieren ab 21 EUR / Monat
Mehr Informationen zum Ratenkauf
MSRP: 349,00 €

including 19% VAT. , excl. Shipping costs / shipping time info

available from stock


Product details

Description

SON hub dynamo SON 28 15 150 disc | 15x150 mm thru axle Fatbike

Hub dynamo or thru axle?

So far, the demanding biker has had to do without one of the two. The thru axle hub dynamo for fat bike forks with 150mm clamping width. The thru axle stiffens the suspension fork and enables a more precise positioning of the hub, which is particularly useful for disc brakes. More and more mountain bikers want to take advantage of a hub dynamo lighting system. No wonder SON was asked more and more about a thru-axle hub dynamo.
In order to bring both under one roof, not only the axle construction, but also essential parts of the generator had to be changed. Result: A hub dynamo that is similar in appearance, robustness and electrical values to the SON 28 disc, but with a thick "hole".

5 year guarantee, quality made in Germany.


Technical specifications:

intended use : MTB
Hub body material: aluminum 6082 T6
Material axle : hollow axle, work hardened stainless steel
axle type : 15x150 mm thru-axle, Fat Bike
Brake disc mount: 6-hole (IS2000)
Permitted wheel sizes: 16 "- 29"
Electrical power: 6V / 3W according to StVZO
Approval: K 834
Efficiency: 65% at 15 km / h in a 28 "wheel
Power consumption when idling: 0.5 watts at 15 km / h in a 28 "wheel
Magnet rotor: Neodymium-iron-boron, 26-pin
Contact: 4.8 mm flat plug, two-pole, ground-free
Bearings: Deep groove ball bearing 629 2RSH (SKF)
Seal: gap seal and sealing washers, pressure compensation system
Brake disc position: 10.4mm
Flange distance: 82mm
Number of holes: 32 holes
Colors: black anodized

Weight according to the manufacturer: 530g
Weight weighed:


Scope of delivery:

1x SON 28 15 150 disc hub dynamo
1x connection material for the headlight

Brief instructions: SON28 / SON28disc | DE Note: SON28 15 Disc | DE

MPN:
373210
matching products:
SON Dynamo LED Head Light Edelux II | 140 cm Cable Lenght... SON Dynamo LED Head Light Edelux II | 140 cm Cable Lenght...
available from stock

SON Dynamo LED Head Light Edelux II | 140 cm Cable Lenght | StVZO

from 149,00 € *
  • MSRP: 149,00 €
  • Item no.: 23054
  • Weight: 94g
SON Dynamo LED Head Light Edelux II 60 cm Cable Lenght |... SON Dynamo LED Head Light Edelux II 60 cm Cable Lenght |...
in 1-3 Days

SON Dynamo LED Head Light Edelux II 60 cm Cable Lenght | StVZO

from 149,00 € *
  • MSRP: 149,00 €
  • Item no.: 23061
  • Weight: 85g

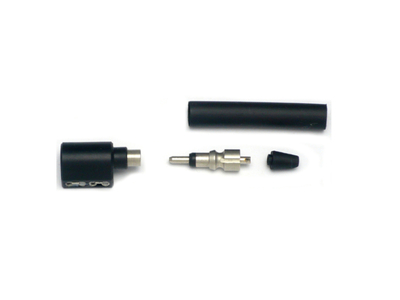

SON Coaxial-Adapter for SON Hubs | incl. plug
