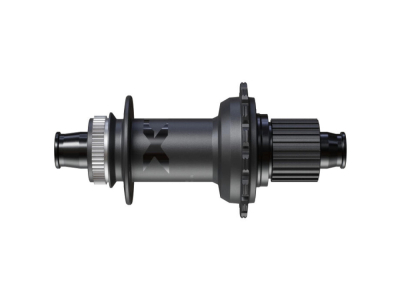

SHIMANO XTR rear hub FH-M9210 Center Lock | 12x148 mm Boost | Shimano Micro Spline
Robust. Intuitive. Consistent. - is the motto for the new XTR M9200 groupset. With it, Shimano and the bike community are celebrating the rebirth of Di2 technology on their top model. And at the very highest level. Thanks to contemporary wireless control, perfect functionality, a 12-speed drivetrain and the usual outstanding build quality, you'll be rushing from victory to victory and giving the competition a run for their money.
The rear hub also meets the high expectations. For the first time, the Japanese have used high-quality stainless steel industrial bearings. Their high bearing quality and perfect sealing ensure smooth running and a long service life. They are also practically maintenance-free and there is no need for time-consuming adjustment of the bearing play.
The Direct-Engagement toothed pulley freewheel provides propulsion. In addition to its distinctive sound, it has a very small engagement angle of 3.5° and thus reduces idle travel to a minimum. Thanks to its low weight, the hub is an excellent basis for a light and robust wheel.
Technical data:
Area of application: Cross Country, Down Country, All-Mountain
Material: Aluminum
Freehub body material: Aluminum
Axle standard: 12x148 mm Boost
Number of holes: 28 or 32 hole
Brake rotor mount: Center Lock
Freehub compatibility: 12-speed Shimano Micro Spline
Freewheel type: Direct engagement toothed pulley freewheel, 102 increments, max. 3.5° free travel
Bearing: 4x stainless steel industrial ball bearings
Hub shell: 15x28x7mm / CN + (17x30x7 mm / CN
Freehub body: 17x26x5 mm / C3 + 15x24x5 mm / C3
Seal: separate sealing ring
Spoke type: standard spokes (J-bend)
max. permissible spoke tension: n/a
maximum system weight: n/a
Finish: anodized matt
Color: dark grey
Weight according to manufacturer: 231g
Weight self-weighed: 234g
Scope of delivery: 1x SHIMANO XTR rear hub FH-M9210 Center Lock | 12x148 mm Boost | Shimano Micro Spline, WITHOUT Center Lock lockring
