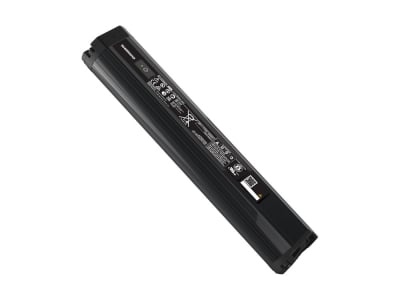

SHIMANO E-Bike battery Steps BT-EN806 | 2nd generation | 630Wh | Integrated
The second generation offers optimum performance and a longer service life. The extremely compact, durable and waterproof Shimano Steps BT-EN806 battery is integrated, allows for a slim frame design and has a low-profile design specially developed for E-MTBs for greater shock and vibration resistance. The high-performance battery with an excellent range of 630 Wh enables consistent recharging and is compatible with the DU-EP801 and DU-EP600 drive units.
Technical data:
Range of use: Shimano Steps
Compatible drive unit: DU-EP801, DU-EP600, DU-EP500
Use: with BM-EN800 and BM-EN801 battery holder
Mounting type: integrated
Battery technology: Li-Ion
Rated voltage: 36 Volt
Nominal capacity: 17.5 Ah
Energy: 630Wh
Charging time: fully charged after 6 hours with EC-8004 charger
Operating temperature: 0°C ... +50°C
Storage temperature: 0°C ... +40°C
Permissible charging temperature range: 0°C ... +40°C
Protection class: IPX5 Weatherproof and waterproof
Dimensions (L x W x H): 420 x 83 x 65 mm
Color: black
Weight according to manufacturer: 3700g
Weight weighed: 3519g
Scope of delivery: 1x SHIMANO e-bike battery Steps BT-EN806 | 2nd generation
Note: Exclusively for use with the EC-E8004 and EC-E6002 chargers.
