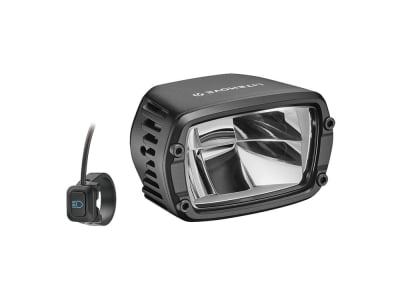

LITEMOVE E-Bike Headlight RXW-2900 Handlebar Mount | StVZO
Litemove is a company that develops and manufactures LED lights especially for e-bikes. They are also active in the field of motorized vehicles and therefore have a great deal of experience and innovation in the lighting segment. The use of aspherical lenses in particular, which offer a complex distribution of the light cone, means that the headlights impress with their powerful and even illumination of the surroundings. The RXW-2900 headlamp is equipped with the advanced Litemove RX Pro technology, which was specially developed for off-road use. With a wide and sophisticated light distribution, the headlamp does its job with flying colors.
It is the brightest StVZO-approved e-bike headlight from Litemove. Specially developed for mountain bike use, the RXW-2900 impresses with its features, including
- Daylight with 60 lux / 650 lumens
- Low beam with 140 lux / 1665 lumen
- High beam with 200 lux / 2900 lumen (28W) or 170 lux / 2425 lumen (22W) or 140 lux / 1970 lumen (17W)
- Light sensor that automatically switches between daylight and dipped beam
- Handlebar remote control to switch between high and low beam
This technology is protected from dirt and water in a sturdy aluminum construction. Cooling fins allow good heat management and increase the service life of the 12 LEDs. The headlight is mounted using a handlebar bracket, making it easy to align it centrally in front of the stem. Holes on the underside also allow the headlight to be mounted on a GoPro-compatible stem using an adapter. It is operated via the display of your e-bike. You use the associated handlebar remote control to operate the high beam, which provides a powerful, even and very wide beam of light with up to 200 lux (2900 lumens). The headlight offers three different adjustable high beam modes for 28W, 22W or 17W power, depending on the e-bike system, which can be set using a small switch on the back of the housing. The 60 lux daylight provides good visibility to other road users so that you can master everyday life safely. A built-in light sensor switches between daylight and dipped beam.
Note: cannot be connected to a dynamo (alternating current). Only compatible with e-bike systems (direct current).
Technical data:
Material: aluminum, CNC-milled, plastic
Dimensions (HxWxD): 50.8 x 83 x 52.0 mm (lamp head)
Supply voltage: 12 V, DC direct current (11-16 V)
Consumption: 17 W
Power supply: 140 cm connection cable, open ends (water-protected)
E-bike compatibility: Bosch, Shimano, Panasonic, Brose, Yamaha, Specialized
Light source: 12 LED
Luminosity: 200 Lux / 2900 Lumen (28W) | 170 Lux / 2425 Lumen (22W) | 140 Lux / 1970 Lumen (17W) (high beam)
140 lux - 1665 lumen (low beam)
60 lux - 650 lumen (daylight)
Optics: RX Pro
Functions: Daylight, low beam, high beam
Communication: E-bike display and via remote control
StVZO approval: K1644 license plate, for e-bikes up to 25 km/h
Bracket: Handlebar bracket for headlight and remote control
Color: black
Weight according to manufacturer: 155g (without accessories)
Weight when weighed: 214g (with accessories)
Scope of delivery:
- 1x LITEMOVE e-bike headlight RXW-2900 handlebar mount | StVZO incl. 140cm light cable
- 1x handlebar mount
- 1x remote control incl. holder
