SHIMANO Dura Ace Di2 Time Trial Shift | ST-R9180 brake lever + BR-R9270 flat mount disc brake | individually
Disc brakes are now also indispensable on time trial bikes and can save you valuable seconds in the fight against the clock thanks to their better controllability and higher braking power. The slim Dura Ace ST-R9180 levers integrate a hydraulic disc brake system into your cockpit in an aerodynamic manner. Of course, the Di2 cables and brake lines are also routed through the handlebars, completely protected from the wind. In contrast to mechanical gears, the integrated Di2 buttons allow you to shift gears in the trailer and in the brake lever position (only in synchronized shift mode). The shift button can also be used in multishift mode for quick gear changes.

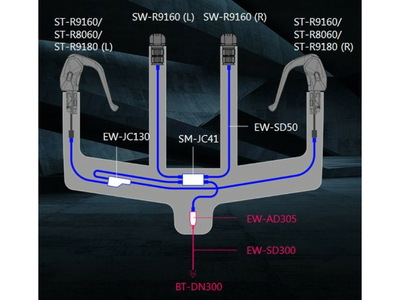

The ST-R9180 levers are compatible with both the 11-speed Dura-Ace 9170 Di2 groupset and the 12-speed Dura-Ace 9270 Di2 groupset. The E-Tube cable adapter EW-AD305 is required for use with the Dura Ace 9270 group.
The BR-R9270 brake calipers offer a larger pad spacing than its predecessor and reduce the noise level during braking. In addition, the peak of high braking performance has been reached with the brand new monoblock construction. In addition, a new venting technology makes maintenance easier than ever.
- flat caliper design (Flat Mount)
- Extremely stiff, one-piece caliper
- L05A-RF Resin brake pads with cooling fins installed as standard
- optimized heat dissipation
- easy adjustment and maintenance
- recommended brake disc for best performance: Shimano RT-MT900
Technical specifications:
Material: carbon composite
Version STI: switching | Brake handle for hydraulic disc brakes
Compatibility: Shimano 9270 | 9170 Dura Ace Di2 groupset
Technology: Synchronized Shifting, Auto-Trim, E-Tube, SLR Evo Technology
Gears: 2x11/2x12, 1x shift button on each side of the handlebar (freely programmable)
Reach adjustment: integrated (with tool)
Connection ports: 1x EW-SD50 (per handlebar side; adaptable to EW-SD300)
Material caliper: aluminum
Brake medium: mineral oil
Mounting: flat mount
Screw length: not specified
recommended brake discs: Shimano RT-MT900
Brake pads: L05A-RF Resin with cooling fins
Brake line length: 1000 mm (front), 1700 mm (rear)
Colour: black, anthracite
Weight according to the manufacturer: 99g (ST-R9180 shift/brake lever); 110g (BR-R 9270 rear caliper)

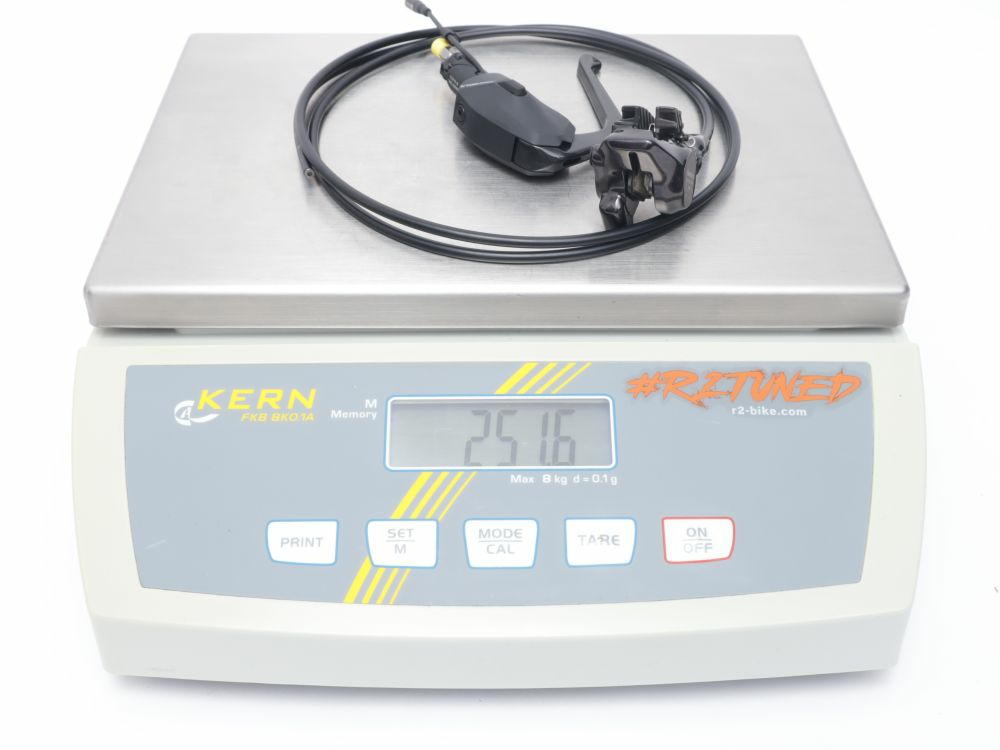

Weight weighed: 251g (rear shift/brake lever including brake caliper with filled line)
Scope of delivery:
1x shift/brake lever left or right
1x Flat Mount brake caliper front or rear with filled hydraulic lines incl. L05A-RF Resin brake pad
