Description
RITCHEY stem WCS Toyon matt black 6 °
The Ritchey WCS Toyon is based on the award-winning Ritchey C220 stem and gives it a more modern shape and increased rigidity for improved handling.
Introduced on the C220 Trail stem, the Toyon also has the larger handlebar wrap of 220 °. By mount the clamping forces over the entire stem body, weight could still be saved on the clamping plate. The patented clamping allows the handlebar to be mounted without having to dismantle the grips and brake levers. A special clamp is used on the fork to reduce the stress on the shaft as much as possible. Thanks to the flip-flop assembly, the stem can be installed at an angle of +/- 6 degrees.
Technical specifications:
Material stem: 2014 aluminum
Material screws: stainless steel
Handlebar clamp: 31.8 mm
Steerer diameter: 1 1/8 "
Lengths: 60 to 120 mm
Angle: -6 ° (84 °)
Clamping height of the steerer tube: 42 mm
Clamp width handlebar: 45 mm
Tool holder: 4 mm hexagon socket
max.permissible torque: 5 Nm
Weight restriction: n / a
Finish: matte
Color: Black
Weight according to the manufacturer: 139g (100 mm)

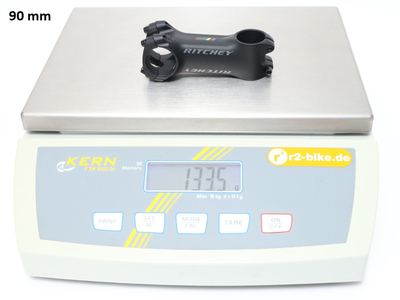

Weight weighed: 134g (90mm)
Scope of delivery: 1x stem RITCHEY WCS Toyon matt black 6 °
