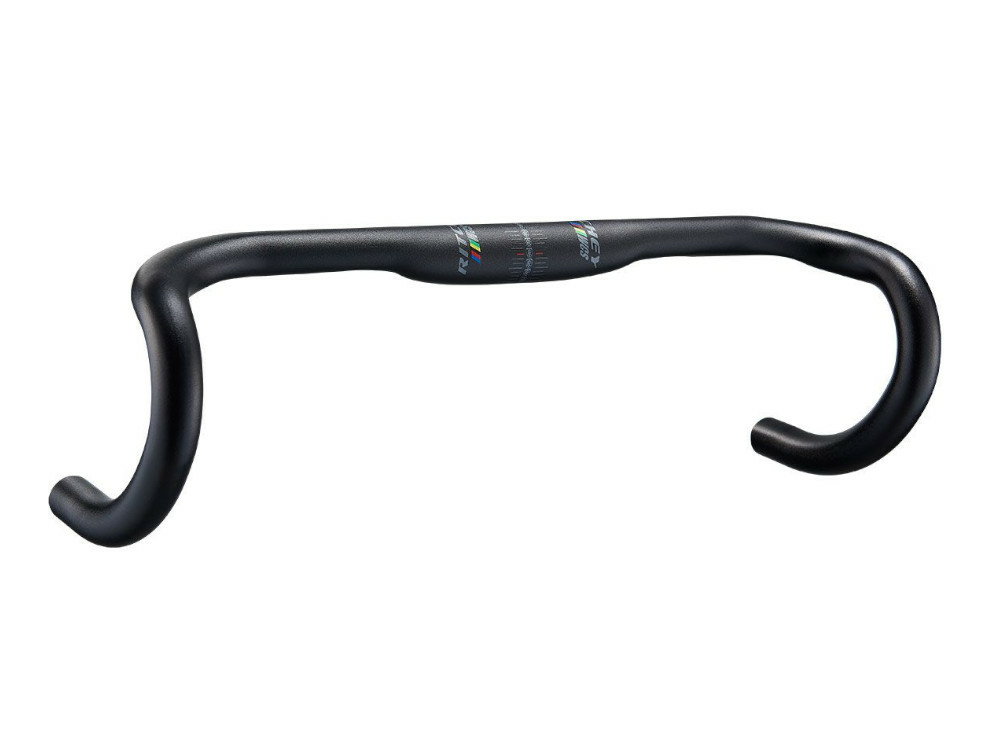

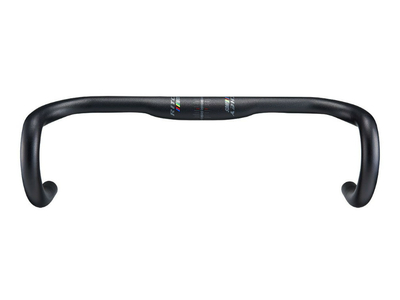

RITCHEY handlebar WCS Road Streem | Di2 ready
The deep tradition of success and performance of the Ritchey handlebar continues with this version of the Streem.
With its wing profile on the top link, the Ritchey Streem hits the wind on a bargain. In addition, the flattened shape offers an extremely comfortable grip position which corresponds to the UCI 3: 1 standard. The traditionally shaped drops are still among the most popular lower link shapes on the market. The partially internally routed cable routing ensures a good compromise between a tidy look and simple cable routing. Thanks to an opening in the stem clamp area and on the lower link, the cables of Shimano Di2 gears can be routed completely internally with the EW-RS910 distributor box.
Di2 ready
Compatible with Shimano EW-RS910 Junction internal. (Hole on the lower left side of the handlebar)
Technical specifications:
intended use : racing bike
Material: aluminum
Handlebar clamp Ø: 31.8 mm
Handlebar width upper link (center - center): 380 mm, 400 mm, 420 mm, 440 mm or 460 mm
Handlebar width top link (outside - outside): n / a
Lower link diameter: 24 mm
Pre-storage / reach: 73 mm
Lowering / drop: 128 mm
Outside bend / flare: 2 °
Inner bend: n / a
Backsweep: 5 °
max.rider weight (driver, clothing and luggage): 110 kg
max.permissible torque: stem 5 Nm | Components 4 Nm
Optics / finish: matt
Weight according to the manufacturer: 287g (420 mm)
Weight weighed: 282g (400mm)
Scope of delivery: 1x handlebar RITCHEY WCS Road Streem | Di2 ready
