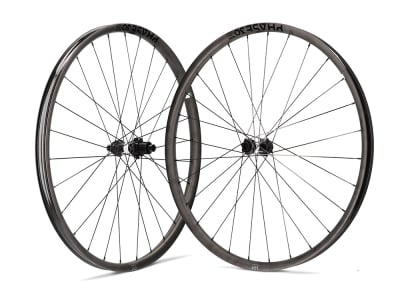

R2BIKE Wheelset 29" XC | DT Swiss 350 | Newmen Phase 30 Light | Sapim CX-Ray

Description

R2BIKE wheelset 29" XC | DT Swiss 350 Straightpull Centerlock hubs | Newmen Phase 30 Light Carbon rims | Sapim CX-Ray

Application: Cross Country XC

XC racers always want to win and are therefore looking for lightweight yet stable wheels. The combination of Newmen carbon rims and DT Swiss hubs should therefore always be on your shortlist. The balanced component selection guarantees you high reliability and a long service life.

DT Swiss 350 Straightpull Centerlock hubs
Switzerland is known for good chocolate, first-class cheese and marvels of precision engineering. The dedication to detail that goes into these products is also reflected in the DT Swiss 350 hubs. Above all, the love of mechanics is easy to see. Thanks to their simple but well thought-out design, the current 350 hubs have become significantly lighter compared to the previous versions. The proven ratchet freehub system of the DT-Swiss 240 hubs makes the hubs an extremely reliable companion. Compared to pawl systems, the ratchet freehub offers a more extensive power transmission, which significantly reduces wear. With 36 teeth, the hub reacts very directly to acceleration. The new shape of the end caps makes disassembly even easier, making it even easier to convert to other axle standards.

Newmen Phase 30 Light Carbon rims
Advanced becomes Phase - Newmen provides a special rim for every area of application within this series. Whether cross-country, all-mountain or enduro, you always get a model that is uncompromisingly customized, but they all have one thing in common: Newmen's high quality.
The Phase Light is the first choice for every racer, with its low weight and first-class riding characteristics. The perfectly processed carbon fibers are extremely impact-resistant and give the rim incredible stability. This means that precise steering movements are possible at all times. A special production process makes reworking and painting unnecessary. This saves even more grams.
The very generous inner width of 30 mm, together with the slightly outward-positioned sidewall, gives the tire an optimally round shape, which is reflected in better grip and more comfort.Newmen has opted for a hookless rim flange, which has been reinforced and is better able to withstand possible punctures. As a result, less air pressure can be used and optimum tubeless compatibility is achieved.

SAPIM CX-Ray spokes
With the CX-Ray, Sapim has succeeded in developing an exceptional spoke. In addition to its low weight, it has an exceptional load capacity and flexibility. This also results in a wide range of applications. Whether road cyclists or mountain bikers, everyone benefits from these positive characteristics. In addition, the flattened middle section ensures excellent aerodynamics. The high material quality enables the construction of stable wheels and guarantees a long service life.
Sapim's CX-Ray spokes can be installed in all standard hub holes.

Wheel construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to give the first owner a lifetime guarantee against spoke breakage, as long as it was not caused by force.

The following services are also included for first-time buyers:

You get a universal wheel bag for all common sizes included.
You will receive a spare spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
Within 2 years of purchase, you will receive a free initial inspection of the wheel, during which the resulting work is completely free of charge. Only shipping costs are incurred.
You get a crash replacement promise: If your wheel is damaged within 2 years of purchase due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.

Technical data

Area of application: Cross Country
Wheel size: 29" (622 x 30 mm)
Rim type: clincher and folding tires
Brake type: Disc brake
Rim material: Carbon
Inner width: 30 mm
Outer width: 36 mm
Rim height: 21 mm
Offset: no
Number of holes: front 28 / rear 28
Spokes: Sapim CX-Ray 2.0 | 0.9 - 2.2 | 2.0, black
Spoking pattern: front 3-crossed | rear 3-crossed
Axle standard front: 15x110 mm Boost
Rear axle standard: 12x148 mm Boost
Brake rotor mount: Centerlock
Front bearing: 2x industrial bearings
Rear bearing: 4x industrial bearings
Freehub compatibility: 12-speed Shimano Micro Spline
Freehub type: Ratchet, 2 pulleys, 36 engagement points
recommended tire width: 58 mm (2.3") - 66 mm (2.6"); 50 mm (2.0") - 76 mm (3.0") possible
maximum tire pressure: 2.5 bar (36 psi) with 50 mm tire width
maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
tubeless capable: yes
Valve hole: Presta valve (SV)
Color rim / finish: black / UD Carbon satin finish
Color decor: white-grey
Color hubs: black with white lettering

Weight according to manufacturer: n.a.
Weight self-weighed: -

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
