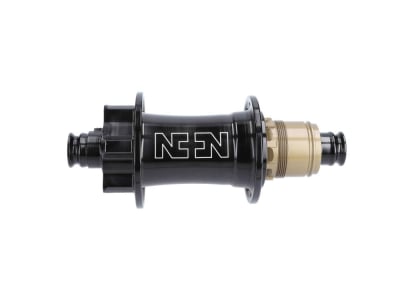

NONPLUS COMPONENTS rear hub Torqon J | 6-hole black 12x157 mm SuperBOOST freehub SRAM XD
Three decades of experience in the development and production of hubs have left their mark, albeit a "very light" one. Over the years, Christian Jenny, Head of Development at NONPLUS COMPONENTS, has amassed an immense amount of specialist and practical knowledge, which led to the production of the company's first prototypes in 2016 after finding an investor. A short time later, in 2018, NON+ was registered as a trademark. Since then, the wheels have never stopped turning at one of the most innovative think tanks for bike components in Germany.New concepts are constantly being developed and patents applied for in order to set new standards in the future.
The Torqon J rear hub is a masterpiece of engineering and is unique due to its weight in combination with its approval for almost every application in cycling. The black anodized oversized hub body forms the heart of the hub, around which everything revolves. Two large bearings support the hub shell on a 17 mm axle, two further bearings support the freewheel and the micro-gap end caps keep dirt and water away from the inside of the hub. A brake rotor mount, which extends directly to the spoke flange, ensures optimum transmission of the braking forces. On the opposite side, the patented freewheel mechanism is concealed inside. The unique tapered toothing has a contact surface that is approx. 400 % larger than conventional spur gear toothing and therefore enables maximum power transmission with minimum wear. Together with the hard anodized surface, the special, very elaborately manufactured back of the tooth ensures low abrasion and thus additionally increases the service life. The 45-fold toothing results in a maximum free travel of 8°.This means you have immediate propulsion when you need it in difficult sections, for example, and don't lose any valuable time when sprinting to the finish.
GEN2
Thanks to high-precision manufacturing and perfect quality control, the second generation hubs do not require the previously used adjuster for bearing play.This means you always have a perfectly adjusted hub with smooth, easy running.
Precision and quality
The elimination of disruptive factors such as flex, vacuum effect, spoke tear-out and tolerances through the highest precision in material selection, manufacturing process and quality assurance enable a warranty period of 4 years!
NONPLUS conical gearing
The unique freewheel mechanism of the NONPLUS hubs has approx. 400% more contact surface than conventional systems and enables maximum power transmission with minimum wear. This represents a major advantage over conventional ratchet systems, as the forces are transmitted by the freewheel at certain points rather than over a large area. Special, very elaborately manufactured tooth backs reduce wear many times over, while a hard anodization ensures long durability.
Tooth to Tooth
The 1:1 gearing plays a major role in the perfect ratio of pedal kickback and propulsion. This guarantees direct power transmission via 45 defined engagement points without detours from the freehub to the hub body.
E-bike compatible
Although the hubs weigh barely more than 170g, they are still fully E-bike (pedelec) compatible.
Simplification
The filigree transition between the brake rotor mount and the flange saves weight and at the same time generates more strength.
Non Vacuum Effect
A unique venting system prevents the build-up of negative pressure due to temperature fluctuations in the hub.fluctuations in the hub. As a result, no water is sucked through the ball bearings, which ensures a significantly longer service life and noticeably smoother running of the bearings.
Special sealing
Mircospalt end caps improve the sealing of the individual hub components.
Technical data:
Range of use: Cross Country to E-Bike
Material: Aluminium
Freehub body material: Aluminium, hard anodized for low wear
Axle standard: 12x157 mm thru axle (SuperBOOST+)
Number of holes: 28 or 32 holes
Brake disc mount:6-hole (IS2000)
Freewheel compatibility: 11-speed and 12-speed SRAM XD (MTB)
Freewheel type: tapered gearing, 45 ratchets
Bearings: 4x industrial deep groove ball bearings (1x 17287 2RS, 3x 6803 2RS)
Spoke type: standard spokes (J-Bend)
max. Permissible spoke tension: 1200N
Maximum system weight: n/a
Color: black with lasered graphics
Weight according to manufacturer: 176g
Weight when weighed: 175.3g
Scope of delivery: 1x NONPLUS COMPONENTS rear hub Torqon J | 6-hole black 12x157 mm SuperBOOST freehub SRAM XD
