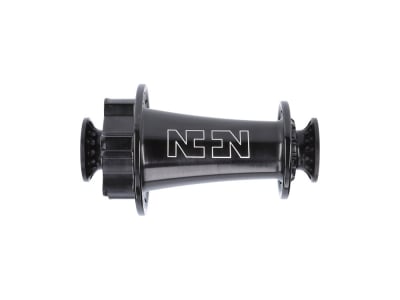

NONPLUS COMPONENTS front hub Torqon J | 6-hole black 15x110 mm Torque Caps BOOST
Three decades of experience in the development and production of hubs have left their mark, albeit a "very light" one.
Over the years, the head of development at NONPLUS COMPONENTS, Christian Jenny, was able to accumulate an immense amount of specialist and practical knowledge, which led to the production of the company's first prototypes in 2016 after finding an investor.A short time later, in 2018, NON+ was registered as a trademark. Since then, the wheels have not stood still at one of the most innovative think tanks for bike components in Germany. New concepts are constantly being developed and patents applied for in order to set new standards in the future.
The Torqon J front hub is the centerpiece of your new, ultra-light wheelset. Despite its 90g weight, the hub has no limitations in terms of its range of use. The black anodized finish not only looks good, it also protects the oversized hub body from corrosion. The whole thing revolves around two high-quality 6803 2RS deep groove ball bearings, which are placed on a 17 mm axle. The micro-gap end caps, which also form a seal against the elements, provide the finishing touch.
GEN2
Thanks to high-precision manufacturing and perfect quality control, the second generation hubs do not require the previously used bearing play adjuster. This means you always have a perfectly adjusted hub with smooth, easy running.
Precision and quality
The elimination of disruptive factors such as flex, vacuum effect, spoke tear-out and tolerances, through the highest precision in material selection, manufacturing process and quality assurance, enable a warranty period of 4 years!
Simplification
The filigree transition between the brake disk mount and the flange saves weight and at the same time generates more strength.
Non Vacuum Effect
A unique venting system prevents the build-up of negative pressure due to temperature fluctuations in the hub. As a result, no water is sucked through the ball bearings, which ensures a significantly longer service life and noticeably smoother running of the bearings.
Special sealing
Micro-gap end caps improve the sealing of the individual hub components.
Torque cap version
The torque cap hub end caps optimize the connection between the hub and fork dropout. With an enlarged diameter of 31 mm, they contribute to a higher rigidity of the overall system of fork and wheel. This increases steering precision and the feedback between rider, bike and trail is much more direct. You can find forks for this standard in the RockShox range.
Technical data:
Range of use: Cross country to e-bike
Material: anodized aluminium
Axle standard: 15x110 mm Torque Cap Boost thru axle
Number of holes: 28 or 32 holes
Brake rotor mount: 6-hole (IS2000)
Bearing: Industrial deep groove ball bearing (2x 6803 2RS)
Spoke type: Standard spokes (J-Bend)
max. permissible spoke tension: 1200N
maximum system weight: n.a.
Color: black with lasered graphics
Weight according to manufacturer:
Weight self-weighed: 90g
Scope of delivery: 1x NONPLUS COMPONENTS front hub Torqon J | 6-hole black 15x110 mm Torque Caps BOOST
NOTE: This hub is equipped with Torque Cap hub end caps and is only compatible with RockShox suspension forks from model year 2017.
