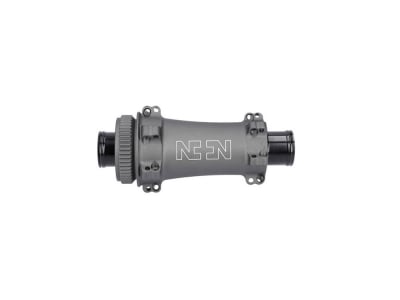

NONPLUS COMPONENTS front wheel hub Road | Center Lock | 12x100 mm | 24 hole | Titanium grey
Three decades of experience in the development and production of hubs have left their mark, albeit a "very light" one. Over the years, Christian Jenny, Head of Development at NONPLUS COMPONENTS, has amassed an immense amount of specialist and practical knowledge, which led to the production of the company's first prototypes in 2016 after finding an investor. A short time later, in 2018, NON+ was registered as a trademark. Since then, the wheels have not stood still at one of the most innovative think tanks for bike components in Germany. New concepts are constantly being developed and patents applied for in order to set new standards in the future.
After the NON+ MTB hubs had made a name for themselves among lightweight builders worldwide, the decision was made to transfer the unique technical features into an ultra-light hub pair with center-lock brake disc mount for road and gravel use.With their slim hub bodies for straight-pull spokes, the NON+ Road hubs fit perfectly into the overall look of modern road bikes. Their matt black anodized finish not only looks good, it also protects the hub bodies from corrosion. The whole thing revolves around two high-quality and smooth-running 6803 RS deep groove ball bearings, which are positioned on a 17 mm axle. The micro-gap end caps, which also form a seal against the elements, provide the finishing touch.
The pair of hubs weigh in at just 211 grams, putting them on a par with the lightest hubs on the market. Despite their extremely low weight, the hubs are approved for a system weight of up to 120 kg in road bike use.
Self-adjusting bearing play
Thanks to high-precision manufacturing and perfect quality control, the hubs do not require an adjustment ring for the bearing play. This means you always have a perfectly adjusted hub with smooth, easy running.
Precision and quality
The elimination of disruptive factors such as flex, vacuum effect, spoke tear-out and tolerances, through the highest precision in material selection, manufacturing process and quality assurance, enable a warranty period of 4 years!
Non Vacuum Effect
A unique venting system prevents the formation of negative pressure due to temperature fluctuations in the hub. As a result, no water is sucked through the ball bearings, which ensures a significantly longer service life and noticeably smoother running of the bearings.
High-speed bearings
The resistance of the bearings has been increased in favor of maximum speed in dry conditions - however, higher wear is to be expected in adverse conditions.
Special sealing
Micro-gap end caps improve the sealing of the individual hub components.
Technical data:
Area of application: Road bike, Gravel
Material: anodized aluminium
Axle standard: 12x100 mm thru axle
Number of holes: 24 holes
Brake rotor mount: Center Lock
Bearing: Industrial deep groove ball bearing (2x 6803 2RS)
Spoke type: Straightpull
max. permissible spoke tension: 1200N
Maximum system weight: 24 holes - 110 kg (Gravel), 120 kg (Road)
Finish: matt anodized
Color: titanium grey with lasered logos
Weight according to manufacturer: n/a
Weight weighed: 62g
Scope of delivery: 1x NONPLUS COMPONENTS front wheel hub Road | Center Lock | 12x100 mm | 24 hole | titanium grey
