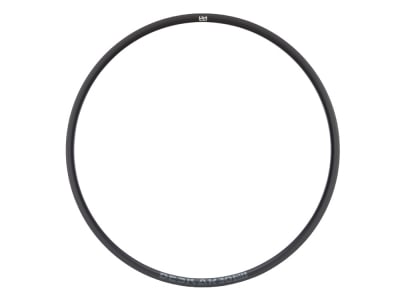

NEWMEN Rim 29" Beskar 30 DH Aluminum | 32 Hole
Newmen provides a special rim for every application within the Beskar series. Whether cross-country, all-mountain or downhill, you always get a model that is uncompromisingly customized, but they all have one thing in common: Newmen's high quality.
With the Beskar Base on your bike, you can really let it rip on the downhill. It shines with absolute durability and first-class riding characteristics. The perfectly crafted aluminium is impact-resistant anodized and, together with the slightly angular cross-section, gives the rim incredible stability. This enables precise steering movements at all times. The rim joint has been elaborately welded and ground and guarantees a long service life. The very generous inner width of 30 mm gives the tire an optimally rounded shape, which is reflected in better grip and more comfort. The latter is also promoted by the very flat profile. Newmen has opted for a rim flange with hooks. This means that the tire sits securely at all times, even in difficult passages or with low air pressure, and the risk of it coming off is significantly minimized. It is also extremely reinforced and can easily withstand hard punctures.
Due to the already solid rim base, no additional washers need to be used when spoking, which saves a small amount of weight.
Technical data:
Area of application: Enduro, downhill, e-bike
Material: Aluminum
Rim type: clincher (clincher and folding tires)
Brake type: only for disc brakes
ETRTO: 622x30
ERD: 599 mm
Inner width: 30 mm
Outer width: 35 mm
Rim height: 19 mm
Offset: no
Number of holes: 32 holes
tubeless compatible: yes
ASTM classification: n/a
recommended tire width: 58 mm (2.3") - 66 mm (2.6") 50 mm (2.0") - 76 mm (3.0") possible
maximum tire pressure: 2.5 bar (36 psi) at 50 mm tire width
maximum system weight: 180 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1200N
Features: optional MG washer recommended
valve hole: 6 mm (SV)
Finish: matt anodized
Color: black with white and grey decals
Weight according to manufacturer: 840g
Weight as weighed: 831g
Scope of delivery: 1x NEWMEN rim 29" Beskar 30 DH aluminum | 32 hole
Note: The special washers (MG washers) required to mount a wheel must be ordered separately and are not included in the scope of delivery!
