Description

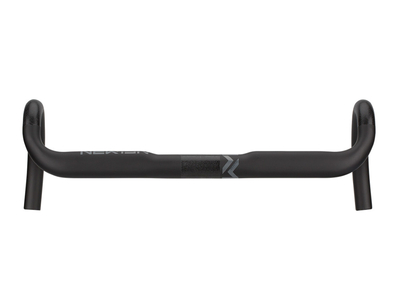

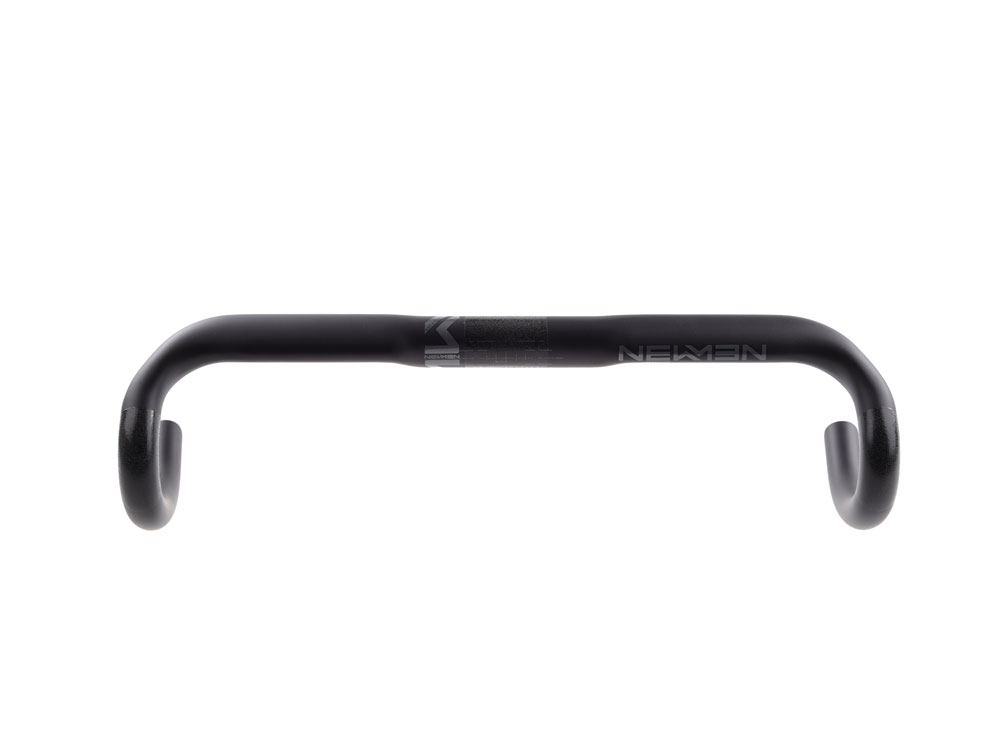

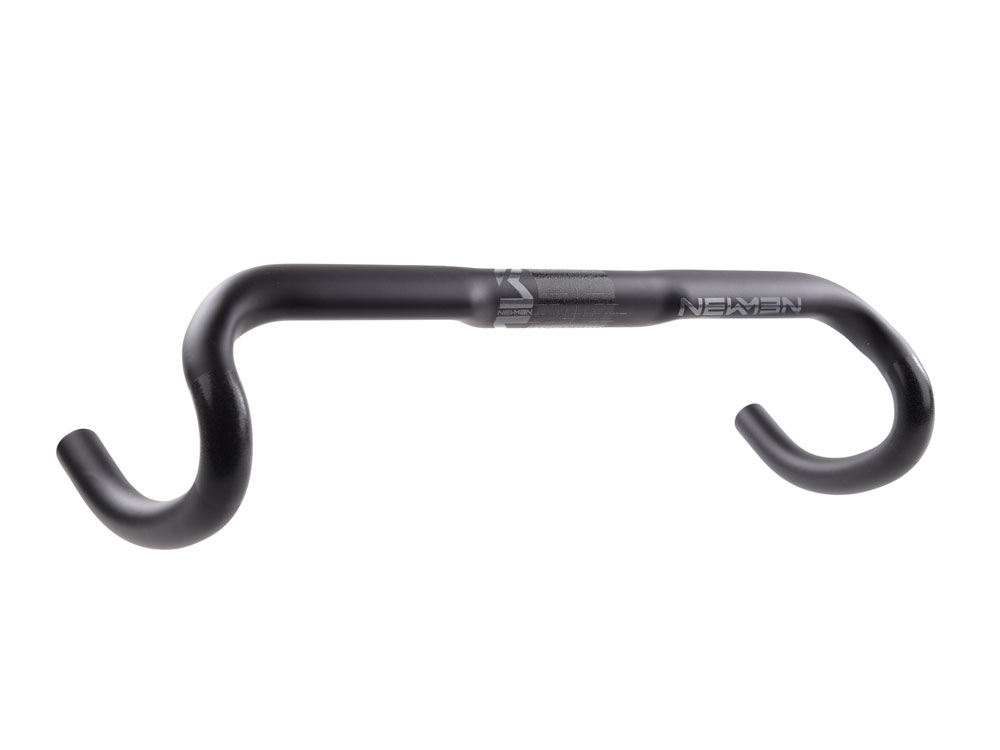

NEWMEN handlebar Advanced 318 Wing Bar road bike carbon
Strong sprint and comfortable! Thanks to the use of high-quality carbon fibers, the Newmen Advanced Wing Bar is extremely stiff and, despite its low weight, offers high safety reserves. Its modern design enables the shift / brake levers to be reached more easily. Its low drop of 125 millimeters offers a pleasant lower link position and makes it a very good choice even for long training trips and grand fondos. The flattened top link makes the Advanced Wing Bar more streamlined. Integrated cutouts for cable routing ensure a tidy cockpit.
Technical specifications:
intended use : road bike, cyclocross, gravel
Material: UD carbon (Toray / Nano epoxy resin)
Handlebar clamp Ø: 31.8 mm
Handlebar width grip position (center - center): 380 mm, 400 mm, 420 mm or 440 mm
Handlebar width handlebar end (center - center): 400 mm, 420 mm, 440 mm or 460 mm
Reach: 80 mm
Lowering / drop: 125 mm
External bend / flare: 5 °
Max. System weight (driver, bike and luggage): no restriction
Max. permissible torque: stem 6 Nm | Components 1.5 Nm
Color: carbon black
Finish: UD matt
Weight according to the manufacturer: 200g (400 mm), 215g (420 mm), 225g (440 mm), 235g (460 mm)

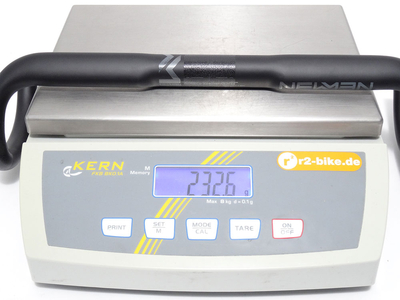

Weight weighed: 233g (420 mm)
Scope of delivery: 1x Newmen Advanced 318 Wing Bar road bike handlebar
