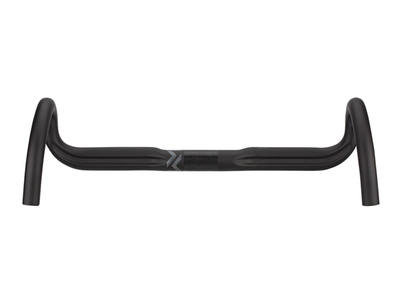

NEWMEN Handlebar Advanced 318 Wing Bar Road Bike Carbon
Sprint strong and comfortable! Thanks to the use of high-quality carbon fibers, the Newmen Advanced Wing Bar is extremely stiff and offers high safety reserves despite its low weight. Its modern design makes it easier to reach the shift/brake levers. Its low drop of 125 millimeters offers a comfortable lower link position, making it a very good choice for long training rides and grandfondos. The flattened top link makes the Advanced Wing Bar more streamlined. Integrated cut-outs for cable routing ensure a tidy cockpit.
Note: The handlebar width specified by the manufacturer refers to the lower handlebar width (center - center). In the upper handlebar area at the brake lever clamp, the handlebars are approx. 5 mm narrower due to the 5 degree flare.
Technical data:
Area of application: Road bike, cyclocross, gravel
Material: UD carbon (Toray/Nano epoxy resin)
Top link shape: ergonomic
Lower link shape: compact
Cable routing: external cable ducts
Handlebar clamp Ø: 31.8 mm
Handlebar width Grip position (center - center): 375 mm, 395 mm, 415 mm, 435 mm or 455 mm
Handlebar end width (center - center): 380 mm, 400 mm, 420 mm, 440 mm or 460 mm
Reach: 80 mm
Drop: 125 mm
External bend / flare: 5°
Max. system weight (rider, bike and luggage): no restriction
max. permissible torque: stem 6 Nm | components 1.5 Nm
E-bike compatibility: yes | up to 25 km/h
Color: carbon black
Finish: UD matt
Weight according to manufacturer: 200g (400 mm), 215g (420 mm), 225g (440 mm), 235g (460 mm)
Weight self-weighed: 233g (420 mm)
Scope of delivery: 1x Newmen Advanced 318 Wing Bar road bike handlebars
