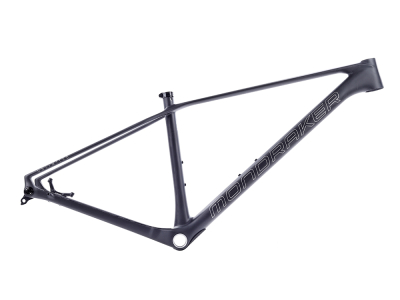

MONDRAKER Frame 29" Podium Carbon Unlimited Naked | Raw Carbon
Mondraker was born out of Spanish downhill racer Miguel Pina's passion for mountain biking in 2001 to develop modern mountain bikes with a clear design language and innovative performance features such as the Zero Suspension System and Forward Geometry of the highest quality. Bikes that make the difference. Bikes that win! These approaches are the foundations of Mondraker's company philosophy and are naturally lived by all employees and team riders, which is also reflected in the new headquarters opening in 2021 in Alicante on the Costa Blanca in Spain. Anyone who has always wondered where the name Mondraker comes from? It is derived from the cartoon hero "Mandrake - the Magician".
With the Podium Unlimited Naked, Mondraker is clearly focusing on uncompromising weight optimization. The raw carbon look not only impresses with its elegant appearance, but also saves a few grams of weight compared to the standard model. The strictly limited frameset is lovingly handcrafted in the Mondraker Blue Lab paint studios as part of the CSP (Color Select). An absolute must-have for all those who pay attention to every gram of their bike!
This frame is one of the lightest cross country hardtail frames currently used in the World Cup. Thanks to the Stealth Air Carbon technology, the engineers were able to optimize every detail of the frame so that, despite its low weight, it can cope with the stresses and strains of the World Cup and sets new standards. It is therefore not surprising that the riders of the PMX Racing Team always choose the Podium when the conditions of the World Cup races do not require a full-suspension bike like the F-Podium DC. Naturally, the engineers at Mondraker attached great importance to aesthetics and design when developing the podium. That's why all cables and lines run through the frame using the HHG Cable Routing System. Thanks to the Forward Geometry, the Podium offers sufficient safety on steeper downhill sections and high traction on climbs. No question, the Podium is the most powerful and lightest hardtail that Mondraker has created with 20 years of experience in building high-performance bikes.
Forward Geometry
The main advantages of the Forward Geometry are increased safety and more confidence on steep descents, even at high speeds, as well as more precision when going uphill. At high speeds, the result is agile, precise and direct handling. Improved traction and control lead to more stability even on very technical and rough terrain.
Stealth Air Carbon
This technology enables the precise placement and alignment of the carbon mats according to the requirements of the respective model. The result is a frame with the best ratio of strength, stiffness, vibration damping and weight in the unmistakable Mondraker design.
Hidden Housing Guide
All cables and lines are routed through the frame for a clean look.
NOTE: Mondraker recommends taking the forward geometry of the frame into account when choosing the length of the stem (frame size S/M: 60 mm stem length, frame size L: 70 mm stem length).
Features:
- Forward Geometry
- Stealth Air Carbon
- HHG internal cable routing
technical data:
Application: Cross Country, Marathon
Material: Stealth Air Carbon
Frame sizes: S, M, L
Wheel size: 29"
Head tube: 1 1/8" - 1.5" tapered
Headset: fully integrated S.H.I.S. IS41.8 x 30.5 | IS51.9 x 40
Front suspension travel: 100 mm
Fork offset: 44 mm recommended
Seat tube (inner diameter): 27.2 mm
Seat tube (outer diameter): n.a.
Front derailleur mount: none, only for 1x drivetrains
Bottom bracket type: 73 mm BSA
Disc brake mount: flat mount, post mount possible with adapter
Maximum permitted brake rotor size: 160 mm
Maximum tire width: 2.35" (also smaller depending on manufacturer)
Rear axle system: 12 x 148 mm thru axle Boost
Gear type: derailleur gears, 1-speed only
max. system weight: n/a A.
Seat tube length (A): S (390 mm), M (420 mm), L (470 mm)
Top tube length (B): S (590 mm), M (611 mm), L (632 mm)
Chainstay length (E): 430 mm
Current seat tube angle (F): 73°
Effective seat angle (G): 74.5°
Steering angle (H): 68.5°
Wheelbase (J): S (1107 mm), M (1128 mm), L (1150 mm)
Head tube length (K): S (85 mm), M (90 mm), L (100 mm)
Reach (L): S (425 mm), M (444 mm), L (463 mm)
Stack (M): S (598 mm), M (602 mm), L (611 mm)
Cable routing: internal
Colors: Unlimited Naked (Raw Carbon), white decals
Finish: matt
Weight according to manufacturer: n/a A.
Weight self-weighed: 867g (size M, including thru axle, seat clamp, derailleur hanger without additional accessories)
Scope of delivery:
1x MONDRAKER frame 29" Podium Carbon Unlimited Naked | Raw Carbon | Team Edition including thru axle and UDH derailleur hanger
1x ONOFF titanium headset
1x seat clamp
1x post mount adapter
1x set of mounting material for internally routed cables and cables including noise protection
