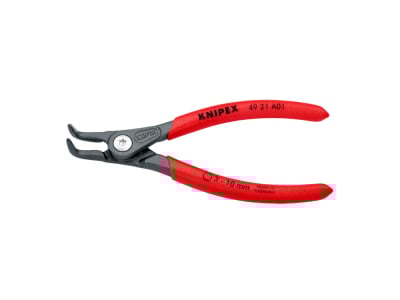

KNIPEX locking pliers gray atramentized 90° | 3 - 10 mm
The working tips of these precision circlip pliers are made of high-density, groove-free spring steel wire and are then positively inserted into the pliers and crimped using the cold forming process. Thanks to the outwardly inclined position of the tips, the rings are held reliably on the pliers. The head of these pliers is angled at 90°. Thanks to this design, retaining rings can be easily reached even if a component is in the way and vertical access to the retaining ring would not be possible.
Atramented surface
Atramentized or phosphated surfaces are widely used on KNIPEX pliers and are very popular with users. This surface treatment consists of a dark phosphate coating. The matt surface reduces the reflection of light, which can be particularly advantageous when working on bright or reflective surfaces. The atreatment gives the pliers an attractive appearance, a good grip, but also weaker corrosion protection (compared to chrome-plated surfaces). Atramentized pliers should be well oiled at all times to improve protection against rust.
Technical data:
Application: for outer ring on shafts
Tool material: Vanadium electric steel forged and oil-hardened
Material handle: covered with plastic
Capacity for bore diameter: 3 to 10 mm
Diameter tips: 0.9 mm
Dimensions (L x W x H): 135 x 75.5 x 11 mm
Color: red, grey
Weight according to manufacturer: 100g
Weight when weighed: 95g
Scope of delivery: 1x KNIPEX locking pliers 90°
