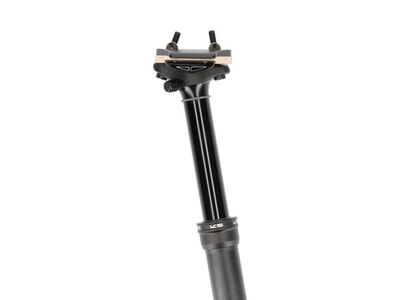

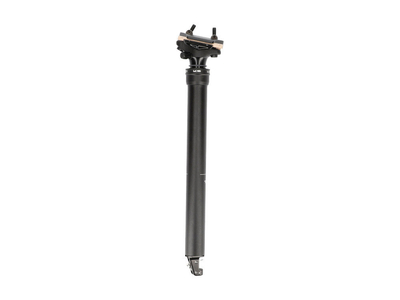

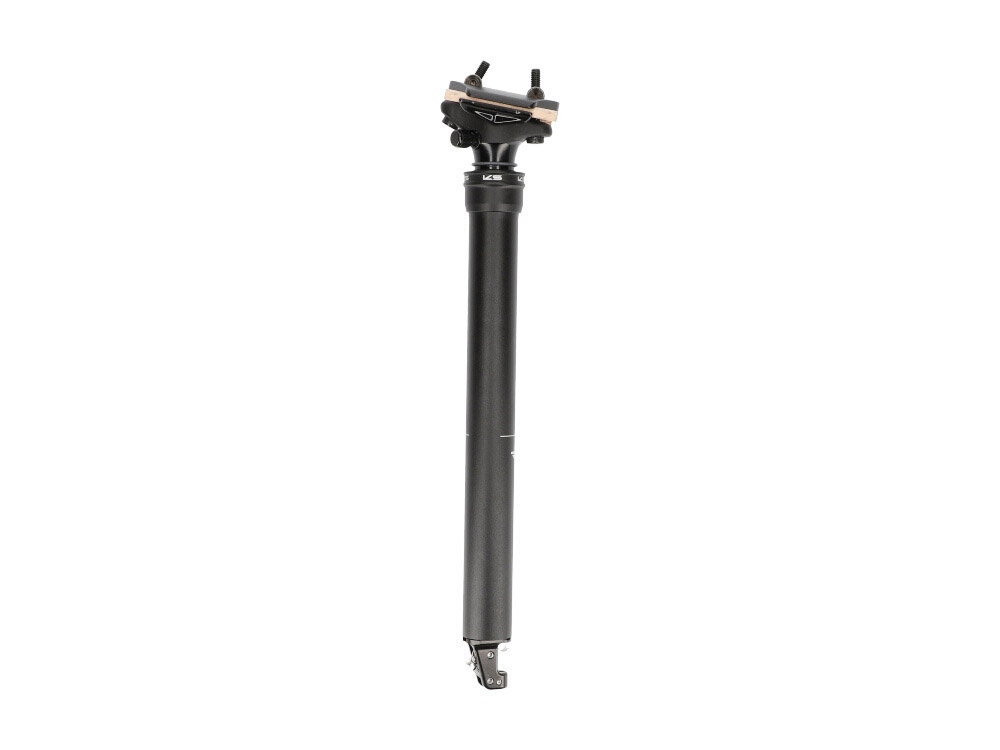

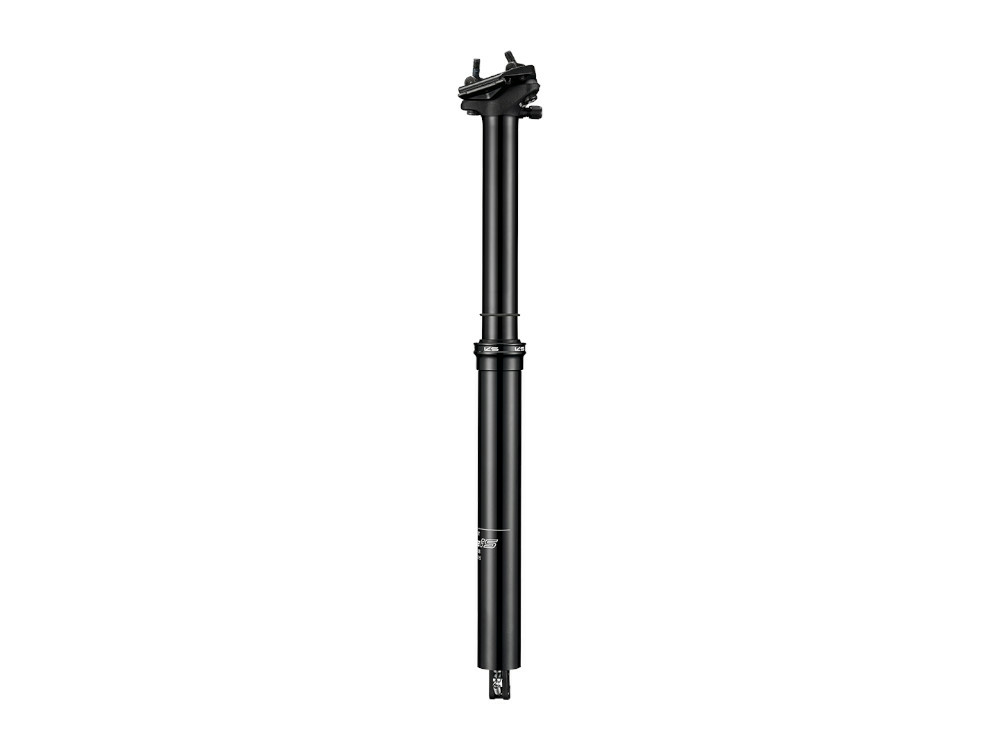

KIND SHOCK seatpost Rage-iS | without lever | 30.9 mm

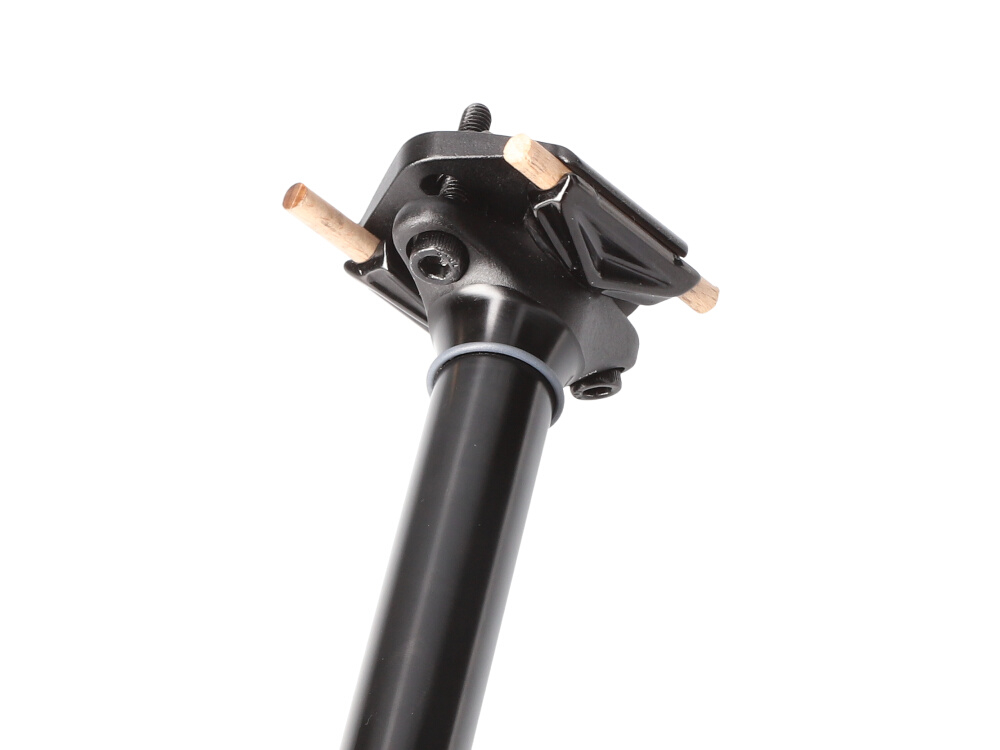

The KS Rage-iS is a powerful telescopic seatpost with a new adjustable air suspension that sets new standards in the hardtail and gravel sector. Thanks to its internal control, it blends in seamlessly with any of your bikes.There are no annoying cables and the risk of getting caught on branches is minimized. Its pneumatic operation ensures smooth and stepless adjustment. A high-quality seal effectively prevents the ingress of water and dirt. The saddle is attached using a 2-screw clamp, which enables millimeter-precise adjustment. The upper cylindrical clamping nuts simplify mounting the saddle and the vertical angle of the saddle clamping bolts increases the clamping force. Thanks to the excellent workmanship and well thought-out inner workings, you will enjoy this seatpost for a long time.

Combined air suspension for absorbing minimal shocks
The integrated air suspension absorbs vibrations, bumps and impacts when riding off-road. This is particularly noticeable on hardtails and gravel bikes and is a real "game changer". The suspension travel of the seatpost is separately adjustable and can be read off via the integrated "sag ring".

Note: This seatpost has additional integrated suspension. This is adjustable via the air pressure and can be read off using a "sag ring". This must be taken into account during assembly.

Technical data:

Area of application: Urban to Enduro
Material: Aluminum, hardened dip tube
Screw material: Steel
Operation: compatible with all KS Southpaw, KG and Westy remote levers (internal cable routing)
Diameter: 30.9 mm

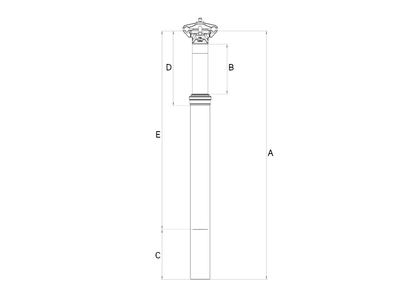

Length (A) when extended: 358 mm (70 mm), 338 mm (100 mm), 388 mm (125 mm), 438 mm (150 mm)
Adjustment range (B): 70 mm, 100 mm, 125 mm, 150 mm
Minimum insertion depth (C) incl. control: 125 mm (70 mm), 105 mm (100 mm), 115 mm (125 mm), 120 mm (150 mm)
Min. possible usable height (D): approx. 50 mm (for all variants)
max. possible usable height (E): approx. 230 mm (70 mm), 230 mm (100 mm), 275 mm (125 mm)
Offset: 0 mm
Compatibility of seat stays: round (7x7 mm) and oval (7x10 mm)
Functionality: Air-sprung hydraulic cartridge
Feature: integrated additional suspension to absorb small bumps and impacts
max. rider weight: n.a.
Color: glossy black

Weight according to manufacturer: 473g (358 mm), 428g (338 mm), 464g (388 mm), 502g (438 mm)

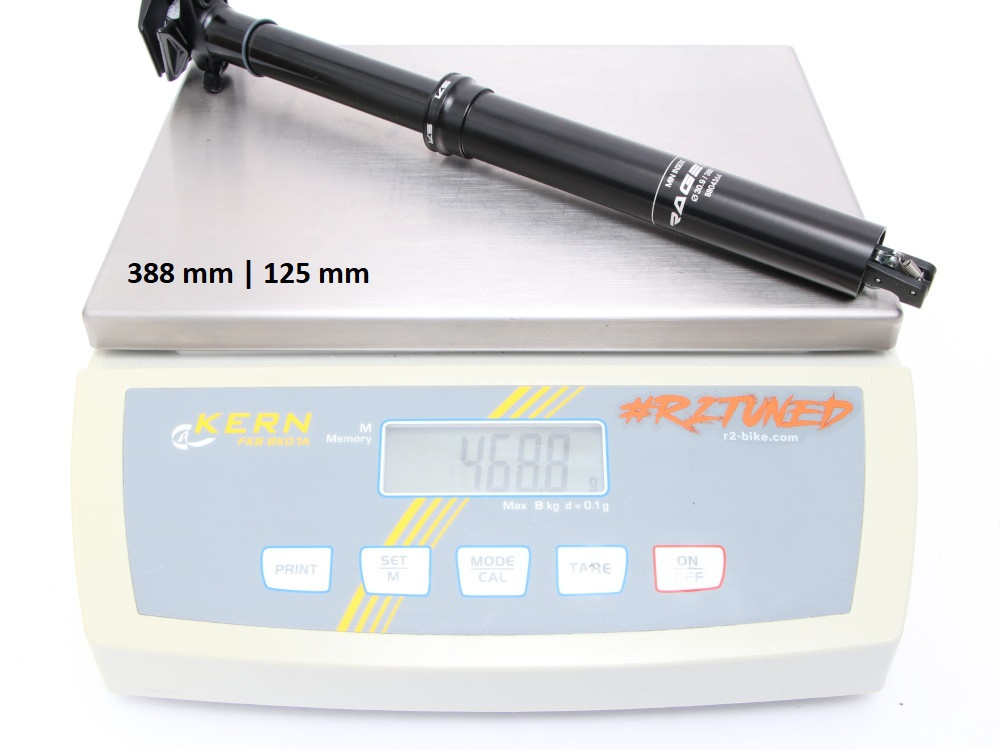

Weight self-weighed: 475g (358 mm), 488g (338 mm), 469g (388 mm)

Scope of delivery:

1x seatpost Rage-iS | without lever
1x cable incl. cover

Note: Please make sure that your frame allows the installation of seatposts with internal cable routing.
