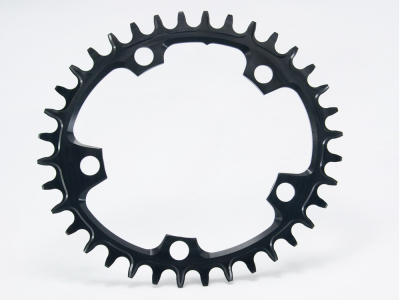

GARBARUK chainring Melon oval 1x narrow-wide CX LK 110
Garbaruk is a company from Ukraine, which has its roots in motorsport.
The design and manufacture of tuning parts for engines and chassis were the mainstay of the Garbaruk company. Today, the Garbaruk brothers, who are enthusiastic about cycling, use the experience and knowledge they have gained in the production of bicycle parts. All steps from design and production to surface finishing take place under one roof.
7075-T6 aluminum from Germany is the raw material from which Garbaruk's chainrings are painstakingly CNC-milled. The chainrings have some features that differ from the competition. In order to keep the chain securely in position even without a chain guide, the teeth have a special profile made up of alternating narrow and wide teeth. So that this is also the case under very rough and rough conditions, the teeth of the Garbaruk chainrings are made approx. 40% longer than normal teeth. Furthermore, the teeth are shaped in such a way that the chain ring works very well even in muddy conditions. Dirt and mud are effectively removed when the chain overflows. We recommend using a rear derailleur with increased cage tension (Sram Type 2-3, Shimano Shadow+), which reliably holds the chain in position and prevents the chain from jumping off.
The ovalization of the chainring increases performance by varying the drive train and optimizing resistance. When kicking with the legs, the natural strengths and weaknesses are brought into line. This achieves better use of the stronger muscle groups and creates a balance in the weaker muscles on the way to work (less stroke).
The Garbaruk chainring for compact cranks with a 110 millimeter bolt circle diameter is ideally suited to converting a cyclocross bike to a 1-speed drive. In this application, the chainring can make the most of its very good self-cleaning and optimum chain hold.
Technical data:
Material: 7075-T651 aluminum
Technology: Narrow Wide, Melon (Oval)
bolt circle diameter : 110 mm compact (5-bolt)
Attachment: 5-arm spider
Number of teeth: 34, 36, 38, 40, 42, 44, 46, 48, 50 or 52
Compatibility cranks : 5-arm compact
Compatibility chain: 9-speed, 10-speed , 11-speed or 12-speed (SRAM Eagle, SRAM Flattop and Shimano HG+), SRAM Transmission
chain line : n/a
Offset: 2mm (34T), 0mm (36T - 56T)
Adjustment options: none
Range (ovalization): 12%
Timing (force application): 108° after TDC (OT)
Color: black, red, blue, green, purple, orange
Weights: 48g (34T), 51g (36T), 54g (38T), 60g (40T), 68g (42T), 78g (44T), 90g (46T)
Scope of delivery: 1x GARBARUK chainring Melon oval 1-fold narrow-wide CX LK 110
