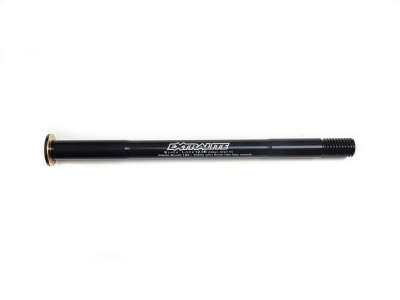

EXTRALITE thru axle Black Lock 12.3B | 12x148 mm for Maxle BOOST
After the super-light QR15 front axle, Extralite is expanding its portfolio with the Black Lock 12.
A thru axle with a diameter of 12 mm, which is used in rear triangles with an installation width of 148 mm.
The axle is CNC-milled from a single piece of 7075 aluminium and then anodized black.
In order to reduce the weight as much as possible, the tool holder is moved to the right-hand side.
The side already reinforced by the threaded part is ideal for this. To reduce the weight to 31g, the rest of the axle is butted several times.
Technical data:
Material: Aluminum 7075
Axle standard: 12 mm thru axle
Hub installation width: 148 mm
Total shaft length: 182 mm
Thread length: 20 mm
Thread: M12 x 1.75
Compatibility: Dropouts with Maxle BOOST standard
Tool holder: 6 mm hexagon socket
Color: black
Weight according to manufacturer: 31g
Weight self-weighed: 31g
