Description
EXTRALITE thru axle Black Lock 15.3 | QR15 for FOX
EXTRALITE has once again pulled out all the stops and developed a 25g QR15 (15 mm) thru axle.
The axle is CNC machined from a single piece of 7075 aluminum and then anodized in black.
To reduce the weight as much as possible, the tool holder moves to the right side.
The side that is already reinforced by the threaded part is ideally suited for this. To push the weight down to 25g, the rest of the axle butted several times.
Technical specifications:
Material: aluminum 7075 T6
Hub standard: 15 x 100 mm
Compatibility: FOX suspension forks with 32 mm stanchions
Axle length: 146 mm
Axle diameter: 15 mm
Thread pitch: M14x1.5
Thread length: 14 mm
Contact surface, not thread side: flat

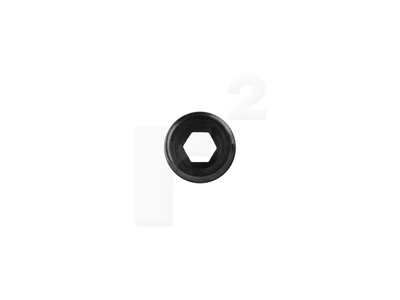

Tool holder: 6 mm hexagon socket
Max. permissible torque: 10 Nm
Color: Black
Weight according to the manufacturer: 26.4g
Weight weighed: 25.2g
Scope of delivery: 1x EXTRALITE thru axle Black Lock 15.3 | QR15 for FOX
