Description

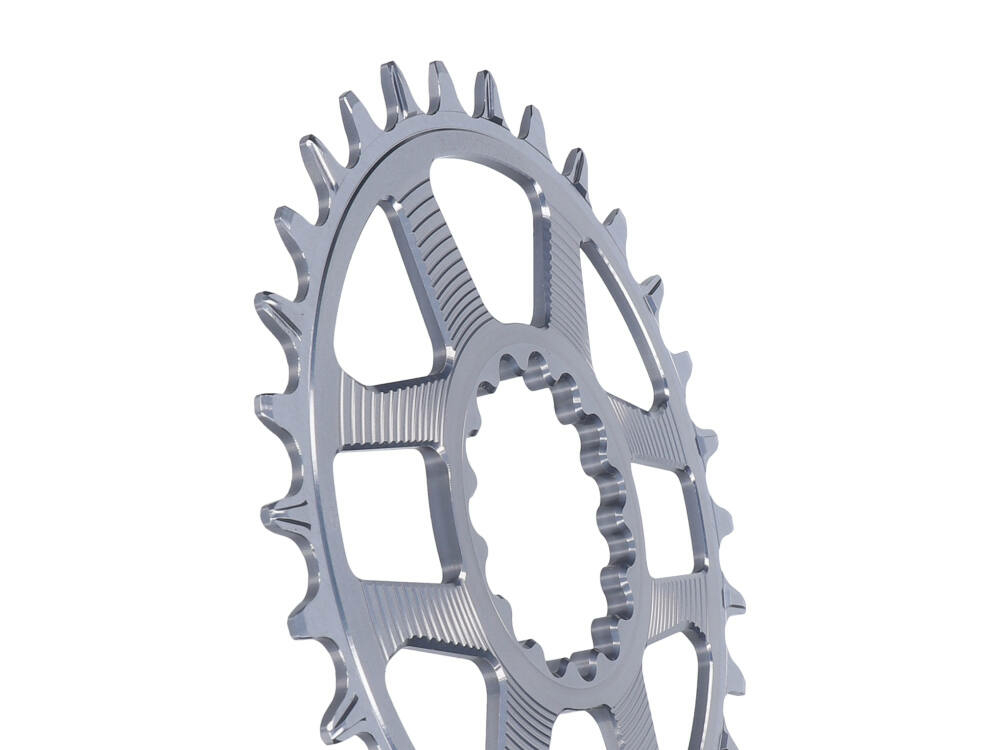

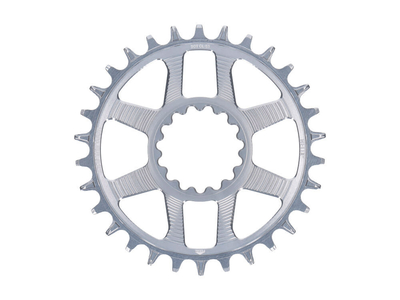

E*THIRTEEN chainring round Helix R Guidering Direct Mount | 1x narrow wide BOOST, SuperBOOST | Gray
The chic Helix R chainring is CNC-milled in one piece from 7075 aluminum and then anodized. The special tooth profile reliably prevents the chain from jumping off and is suitable for all drives from 11-speed to 12-speed . Thanks to the flip-flop design, this chainring can be used for Boost and SuperBoost rear stays at the same time.
Flip flop design
The chainring is designed in such a way that it allows two different chain line lines n 52 mm (Boost) and 55 mm (SuperBoost). Changing between the different chain line is done by turning the chainring during assembly.
Note: The E*THIRTEEN chainring around the Helix R Guidering Direct Mount can only be used with the corresponding e*thirteen cranks that have the e*thirteen Direct Mount System.
Technical specifications:
Area of intended use : MTB
Material: Aluminum 7075 T6
Technology: Narrow Wide
Mounting: e*thirteen Direct Mount
Number of teeth: 28, 30, 32 and 34 teeth
Crank Compatibility: e*thirteen Helix, Helix R, TRS, LG1, and XCX direct mount cranksets
Compatibility chain: 11-speed , 12-speed , 12-speed SRAM Eagle, 12-speed Shimano HG+
Mounting: QuickConnect
chain line : Flip-Flop | 52mm Boost and 55mm SuperBoost
Offset: 5mm
Adjustment options: none
Range (ovalization): -
Timing (force application): -
Finish: glossy
Color gray
Weight according to manufacturer: 28T (48g), 30T (50g), 32T (52g), 34T (54g)
Weight weighed: 47g (30T)
Scope of delivery: 1x chainring E*THIRTEEN Helix R Guidering Direct Mount | 1x narrow wide BOOST, SuperBOOST
