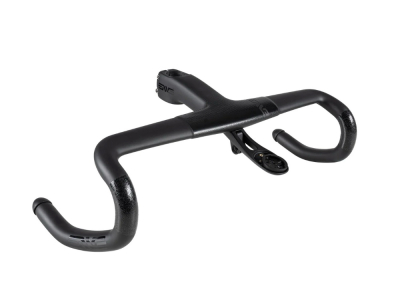

ENVE Stem/Handlebar Unit SES AR One-Piece IN-Route
ENVE products have experienced a rapid rise in the world of cycling. They have even been tested in the big tours, such as the Tour de France or the Vuelta in Spain. The carbon specialists from the USA do not just develop the uncompromisingly best add-on parts for professionals.
One of the most popular handlebars in the ENVE range is now an attractive option for even more riders. It was developed for use on gravel and asphalt and follows the shape and design of the SES AR Custom One-Piece produced in the USA. As a result, the handlebars offer the same precise control and agile riding feel at competition level. Although it appears to be a handlebar and stem unit, the cockpit actually consists of two separately manufactured parts that are joined together in the production process. In this way, ENVE can combine various handlebar widths with different stem lengths, making a total of 20 different variants possible. The top of the handlebar is flat and streamlined. Although slightly turned outwards, the drops remain straight backwards. This increases safety during racing when you are in close contact with the competition. The whole thing is rounded off by a carbon bracket designed exclusively for this unit for your favorite speedometer, which fits perfectly to the handlebars in terms of shape and aerodynamics and also offers space for a GoPro or a headlight. ENVE relies on its own IN-Route system for the fully integrated cable routing.
ENVE IN-Route
Hidden cables and lines are the be-all and end-all when it comes to the modern bike and the aerodynamic advantages in competition. As a complete system, ENVE IN-Route offers a variety of stem, handlebar, headset and fork combinations to provide the right fit for every frame material and rider size. It routes all shift and brake lines through the stem, then through the headset and aligns them in front of the steerer tube. From there, the front brake enters a port on the front of the steerer tube to be routed through the left fork leg to the brake. The rest flows around the steerer tube into the down tube. These features make IN-Route a complete all-in-one cable integration solution.
The SES AR One-Piece is compatible with ENVE's Melee, Fray and MOG models as well as a variety of custom frames that support the IN-Route system. In addition, ENVE has developed special headset covers to extend compatibility with leading brands.
Note: We recommend registering the product within 60 days of purchase to be eligible for warranty services and accident protection program. Register here.
Technical data:
Area of application: Road, Gravel
Material: UD carbon
Top link shape: aero
Lower link shape: compact
Cable routing: fully integrated routing through handlebar-stem unit and head tube
Stem length: 90 mm, 100 mm, 110 mm, 120 mm, 130 mm
Handlebar width top link (center - center): 380 mm, 400 mm, 420 mm, 440 mm
Lower link width (outer - outer): 430 mm, 450 mm, 470 mm, 490 mm
Reach: 76 mm
Drop: 129 mm
Flare: 50 mm
Backsweep: 0°
Stem angle: -7°
max. system weight: n/a
max. tightening torque: 5.5 Nm
Finish: matt
Color: black
Weight according to manufacturer: 335g (100 mm / 400 mm), 340g (100 mm / 420 mm), 345g (100 mm / 440 mm)
Weight self-weighed: -
Scope of delivery:
1x Enve stem/handlebar unit SES AR IN-Route One-Piece incl. handlebar end plugs
1x mount for Garmin & Wahoo incl. GoPro adapter
1x Ahead cap incl. screw
2x 5 mm spacers
3x 10 mm spacer
1x 10 mm external bypass spacer
