DARIMO Stem IX2 UD matte | -12°

Description
Variations

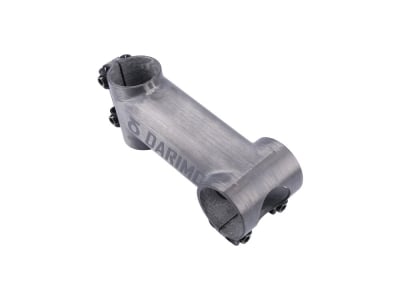

DARIMO stem IX2 UD matt | -12°

A little tip first: Please always assemble this stem properly. There is a risk that it could float away due to its light weight. This is really phenomenal at 62 g and a length of 80 mm. Anyone who wants to build an ultra-light bike should consider the Darimo stem.

But how do the Spaniards manage to produce such a flyweight? The clever minds from Valencia have worked a lot and save material wherever they can. But of course they also pay attention to safety and rigidity. For the latter, the shape plays an important role. Round stems have a high torsional rigidity, while more square cross-sections are very stable in the vertical direction. As a result, a combination of both forms was chosen, which combines the respective advantages. It also has a striking look and is an eye-catcher on your bike.
The handlebar is held to the front panel by two titanium screws. This further saved some weight compared to the IX4 version.

Hints:
The Darimo stem is a high-end product and requires careful work during installation. All torques and driver weights specified by the manufacturer must be strictly adhered to. This increases the service life of the stem and is for your safety.
When using it on a racing bike, it should be noted that the diameter of the upper link must not exceed 31.8 mm due to the non-removable front cap. Otherwise there is a risk of damage to the handlebars and stem. Aerobars are therefore excluded.

Technical specifications:

Area of intended use : mountain bike (cross country, marathon)
Stem Material: UD Carbon
Material screws: titanium
Handlebar clamp Ø: 31.8 mm
Steerer diameter: 1 1/8"
Lengths: 60, 70, 80, 90, 100, 110 or 120 mm
Angle: -12°
Clamp height steerer tube: 47 mm
Handlebar clamping width: 46 mm
Tool holder: 4 mm Allen key
Max. permissible torque: 3.5 Nm
Weight limit: max. 90 kg (driver + clothing + luggage)
Finish: UD carbon matte
Color: Black; Decals: black

Weight according to the manufacturer: 66g (100mm)
Weight weighed: 62g (80 mm)

Scope of delivery: 1x DARIMO stem IX2 UD matt | -12°

Note: The handlebars shown are for illustration purposes only and are not included.

more  always opened

DARIMO Stem IX2 UD matte | -12° 60 mm

in about 2 - 3 weeks

301,68 €

DARIMO Stem IX2 UD matte | -12° 70 mm

in about 2 - 3 weeks

301,68 €

DARIMO Stem IX2 UD matte | -12° 80 mm

in about 2 - 3 weeks

301,68 €

DARIMO Stem IX2 UD matte | -12° 90 mm

in about 2 - 3 weeks

301,68 €

DARIMO Stem IX2 UD matte | -12° 100 mm

available from stock

301,68 €

DARIMO Stem IX2 UD matte | -12° 110 mm

in about 2 - 3 weeks

301,68 €

DARIMO Stem IX2 UD matte | -12° 120 mm

in about 2 - 3 weeks

301,68 €

Manufacturer information

Darimo Carbon Fiber

Carrer dels Fornillers 7

46160 Valencia

Valencianische Gemeinschaft

Spanien

http://darimo.eu/

SKU:	39234
Item weight:	62g

301,68 €

MSRP: 359,00 €

incl. 0% VAT , Plus

Length

This item has variations. Please select the requested variation.

available from stock

available from stock

The item is in stock and will be delivered to you in about 2 - 6 business days (in the EU). When paying by cash in advance, we ship the order after receipt of payment. If your order contains products with different availabilities, this may delay the delivery.
more shipping info: Link »
