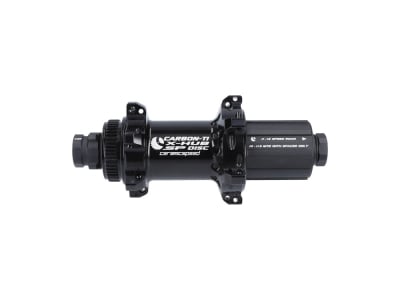

CARBON-TI rear hub X-Hub SP Ceramicspeed Center Lock X-12 for 12x142 mm thru axle | 24 hole | black | freehub Shimano Road
Products from Carbon-Ti stand for lightweight construction without compromising on stiffness. After all, all parts are ridden and tested in the World Cup. This guarantees the end user high quality and reliability. All Carbon-Ti hubs are developed and produced in Italy.
The hub body of the X-Hub SP rear hub is elaborately CNC-milled and rotates around a multi-butted aluminum axle. With a diameter of 17 mm, this provides the hub with considerable rigidity. The Ceramicspeed version is fitted with exclusive ceramic bearings from the Danish bearing specialists. In addition to their longevity, the bearings help you save a few watts thanks to their silky smooth running. The axle play can be easily adjusted by hand from the outside. The new pre-load adjustment ring is now easier to operate.
The freewheel engages via four pawls, each with three teeth, in a 56-tooth titanium ring gear to withstand even the hardest pedaling of performance-oriented riders. Weighing less than 200g, the X-Hub is one of the lightest rear hubs on the market.
The hub is designed for straight pull spokes. These can generate a little more stiffness. However, the greater advantage lies elsewhere. The weak point of a bent spoke is the head with its bend. If a spoke breaks, it is usually at this point. Straight-pull spokes do not have this weak point.
We will be happy to make you an offer for a complete custom wheelset with CARBON TI hubs, spokes and rims of your choice. Please send us an e-mail to [email protected]!
Please note:
Only use Center Lock rings for 15/20 mm thru axles with external teeth to mount the brake disc. Otherwise it will not be possible to fit the tool correctly due to the pre-load ring.
Technical data:
Area of application: Road bike, gravel, cyclocross
Material: Aluminum 7075-T6, Grade5 titanium, stainless steel
Axle standard: 12x142 mm thru axle
Number of holes: 24 holes
Brake rotor mount: Center Lock
Freehub compatibility: 11-speed Shimano Road, 9-, 10-, 11-speed Shimano MTB (only with cassette spacer)
Freehub type: 4 pawls, 56 ratchets
Bearing: 4x Ceramicspeed bearings (1x 61903-2RS1, 3x 61803-2RS1)
Spoke type: Straightpull (straight)
Spoke tension: 1176 N (recommended), 1270 N (maximum)
Maximum system weight: without weight limit
Color: black
Weight according to manufacturer: 182g
Weight self-weighed: 192g
Scope of delivery: 1x CARBON-TI rear hub X-Hub SP Ceramicspeed Center Lock X-12 for 12x142 mm thru axle | 24 hole | black | freehub Shimano Road
MPN:
XHSPCLX1224N ceramicspeed
