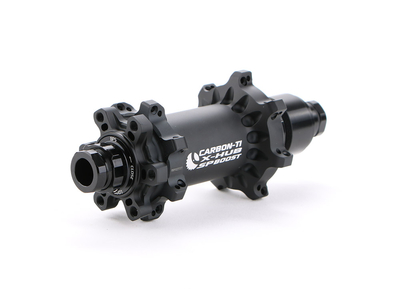

CARBON-TI rear hub X-Hub SP 6-hole BOOST 148 XD for 12x148 mm thru axle | Freewheel SRAM XD
Products from Carbon-Ti stand for lightweight construction without recklessness and compromises in stiffness. After all, all parts are driven and tested in the World Cup. This guarantees the end user high quality and reliability. All Carbon-Ti hubs are developed and produced in Italy.
The hub body of the X-Hub SP rear hub is elaborately CNC-milled and rotates around a multi-butted aluminum axle. With a diameter of 17 mm, this brings a good degree of rigidity to the hub. Four high-quality, double-sealed ball bearings are installed, which ensure a permanently silky smooth run. The axis play can easily be adjusted by hand from the outside. The new pre-load adjustment ring is now easier to operate.
The freewheel engages with four pawls, each with three teeth, in a 56-fold titanium tooth ring in order to be able to withstand even performance-oriented drivers. With a weight of well under 200g, the X-Hub is one of the lightest rear hubs on the market.
The hub is designed for straight straight pull spokes. These can generate a little more rigidity. But the bigger advantage lies elsewhere. The weak point of a curved spoke is the head with its curvature. When a spoke breaks, it is mostly at this point. Spokes in particular do not have this weak point.
We would be happy to make you an offer for a complete custom wheelset with the CARBON TI hub, spokes and rims of your choice. Please send us an email to [email protected] !
Technical specifications:
intended use : MTB, All-Mountain, Enduro, Gravel
Material: aluminum 7075-T6, Grade5 titanium, stainless steel
Installation width: 148 mm Boost
axle type : 12x148 mm Boost
Number of holes: 24, 28 or 32 holes
Brake disc mount: 6-hole
Freewheel compatibility: 11-, 12-speed SRAM XD
Freewheel type: 4 pawls, 56 notches
bearing : 4x industrial bearings (1x 61903-2RS, 3x 61803-2RS)
Seal: labyrinth rubber seals
Spoke type: straight pull (straight)
Spoke tension: 1270 N
maximum rider weight: no weight limit

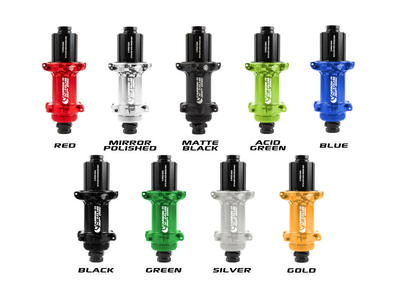

Color: black, red, gold, blue, silver, green, acid green or matt black
Weight according to the manufacturer: 184g (24 holes), 186g (28 holes), 189g (32 holes)
Weight weighed: 185g (28 holes)
Scope of delivery: 1x CARBON-TI rear hub X-Hub SP 6-hole BOOST 148 XD for 12x148 mm thru axle | Freewheel SRAM XD
