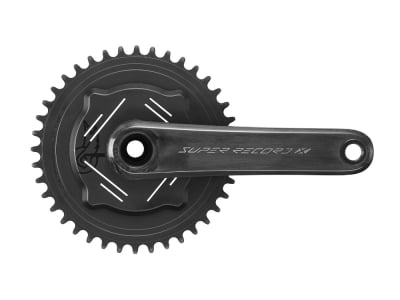

CAMPAGNOLO Crankset incl. Chainring 1-speed GRAVEL Super Record 13 X

In 1973, Campagnolo introduced the first Super Record groupset - a consistent further development of the Record groupset that set new standards in terms of performance, lightweight construction and exclusivity. More than 50 years later, Campagnolo is continuing this tradition with the Super Record 13 platform and opening up new terrain in the process: as the first electronic Campagnolo groupset for gravel routes at maximum speed, it combines robustness, precision and iconic design into a system that proves its performance not only on asphalt. Campagnolo Super Record 13 X is made for fast adventures on challenging trails and at the same time a further step in redefining the brand identity - developed with the aim of setting a benchmark in the high-end segment even off perfect roads.

A technical masterpiece with an unmistakable design language: the Super Record 13 X crank attracts everyone's attention. This is ensured by the successful combination of matt aluminum aero chainring and carbon crankarms with their iconic, shiny finish. The deliberately visible carbon structure underlines the majestic elegance of the Italian set. Six chainring sizes from 38 to 48 teeth, combined with two cassette options, provide you with exactly the gear range you need for your personal gravel mission. Born from the experience of the Ekar group, the tooth profile has been redesigned to optimize chain engagement, smooth out the drivetrain and prevent chain jumps even on bumpy trails. A new surface treatment also noticeably increases the wear resistance of the mono chainrings. Campagnolo remains true to its Ultra-Torque technology in the crankshaft system: two titanium half-shafts, firmly connected to the crankarms, mesh via Hirth splines and are securely fixed in place by a central oversize bolt. Adapted to the geometry of modern gravel frames, the ultra-torque crankshaft has been lengthened and optimized to a chainline of 47.5 mm and a Q-factor of 152 mm. Smooth running is ensured by ceramic bearings pressed onto the shaft, which together with the QCK-Tech bearing shells provide excellent protection against water and dirt. The wide range of QCK-Tech cups and bottom brackets ensures compatibility with all current bottom bracket standards.

Like all components of the electronic groupset, the crank units are also manufactured entirely in Italy - an expression of the highest precision, perfect craftsmanship and uncompromising reliability.

Technical data:

Area of application: Gravel
Crank arm material: Carbon
Chainring material: Aluminum
Crankshaft material: Titanium
Crankshaft diameter: 25 mm (Campagnolo UltraTorque)
Crank length: 165 mm, 170 mm, 172.5 mm, 175 mm
Bolt circle diameter: n/a
Spider: 4-arm
Number of teeth: 38 teeth, 40 teeth, 42 teeth, 44 teeth, 46 teeth, 48 teeth
Chainring bolts: 4 pieces made of aluminum
Chainline: 47.5 mm
Q-factor: 152 mm
Groupset compatibility: Campagnolo 1x13 GRAVEL Super Record 13 X
Bottom bracket compatibility: Campagnolo QCK-Tech
Chain compatibility: Campagnolo C13
Max. rider weight: n/a
Crank arm finish: glossy
Chainring finish: matt
Color: black

Weight according to manufacturer: n/a
Weight self-weighed: 633 g (165 mm crank + 44 tooth chainring)

Scope of delivery:

1x Campagnolo crankset 1-speed GRAVEL Super Record 13 X
1x Campagnolo Aero chainring Super Record 13 X incl. chainring bolts
