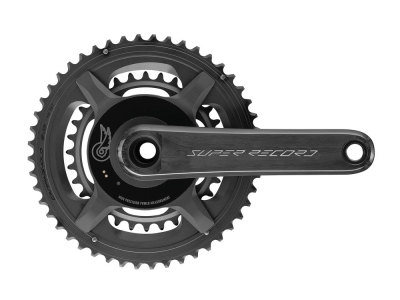

CAMPAGNOLO Crankset Powermeter incl. Chainrings 2-speed ROAD Super Record 13
Campagnolo introduced the first Super Record groupset in 1973 - a consistent further development of the Record groupset that set new standards in terms of performance, lightweight construction and exclusivity. More than 50 years later, Campagnolo continues this tradition with the Super Record 13 platform and takes it to a new level: as the fastest electronic groupset currently on the market, it not only offers the widest range of gear ratios, but also marks the beginning of a redefinition of the brand identity - developed with the aim of setting a new benchmark in the high-end segment.
A technical masterpiece with an unmistakable design language: the crank of the Super Record 13 groupset attracts everyone's attention. This is ensured by the successful combination of matt aluminum chainrings and carbon crankarms with their iconic, shiny finish. The deliberately visible carbon structure underlines the majestic elegance of the Italian set. Thanks to seven different chainring combinations - 45/29, 48/32, 50/34, 52/36, 53/39, 54/39 and 55/39 - the setup can be tailored to individual requirements. In combination with four different cassettes, this results in the most versatile and complete gear range currently available on the market. A new surface treatment noticeably increases the wear resistance of the chainrings. In addition, the redesigned tooth profiles enable even faster and more precise chain changes between the chainrings. Campagnolo remains true to its Ultra-Torque technology in the crankshaft system: two titanium half-shafts, firmly connected to the crankarms, mesh via Hirth splines and are securely fixed in place by a central oversize bolt. This design not only enables millimeter-precise positioning, but also reduces the space required at the side at axle height - and thus prevents unwanted contact between the ankle and crank. Crank arm lengths of 165, 170, 172.5 and 175 mm are available. With a Q-factor of 148.5 mm, the crank is optimally designed for efficient, ergonomic pedaling. Smooth running is ensured by ceramic bearings pressed onto the shaft, which together with the QCK-Tech bearing shells provide excellent protection against water and dirt. The wide range of QCK-Tech cups and bottom brackets ensures compatibility with all current bottom bracket standards.
Power meter from SRM
In modern training control, precise power measurement is crucial, especially for ambitious cyclists who want to improve their performance in a targeted manner. A power meter on the crank offers the most accurate and direct measurement of pedaling power, as it measures where the power is actually generated: directly at the interface between the rider and the drive. Compared to measuring systems on the hub or the pedals, a crank power meter provides a more harmonious and distortion-free overall picture of the real power. The SRM power meter with HPPM technology (High Precision Power Measurement) sets new standards in terms of accuracy and response speed. Its outstanding strength lies in the continuous data acquisition at intervals of 5 milliseconds, which allows even the smallest power fluctuations to be detected and evaluated in real time. 16 sensors simultaneously measure the angular speed of the integrated gyroscope and the torque acting on the crank. This high-frequency measurement data is used to calculate the power output with maximum precision.
Like all components of the electronic shifting group, the crank units are manufactured entirely in Italy - an expression of the highest precision, perfect craftsmanship and uncompromising reliability.
Technical data:
Area of application: Road, Gravel
Crank arm material: Carbon
Chainring material: Aluminum
Crankshaft material: Titanium
Crankshaft diameter: 25 mm (Campagnolo UltraTorque)
Crank length: 165 mm, 170 mm, 172.5 mm, 175 mm
Bolt circle diameter: 121 mm (large chainring), 88 mm (small chainring)
Spider: 4-arm
Chainring gradation: 45/29 teeth, 48/32 teeth, 50/34 teeth, 52/36 teeth, 53/39 teeth, 54/39 teeth, 55/39 teeth
Chainring bolts: 8 pieces made of aluminum
Chainline: 45.8 mm
Q-factor: 148.5 mm
Groupset compatibility: Campagnolo 2x13 ROAD Super Record 13, Campagnolo 2x13 ALL ROAD Super Record 13
Bottom bracket compatibility: Campagnolo QCK-Tech
Chain compatibility: Campagnolo C13
max. rider weight: n/a
Crank arm finish: glossy
Finish chainring: matt
Color: black
Weight according to manufacturer: 650g (172.5 mm crank with 45/29 chainring set)
Weight self-weighed: 698g (172.5 mm crank with 48/32 chainring set)
Scope of delivery:
1x Campagnolo crank Powermeter 2x ROAD Super Record 13 with mounted USB ceramic bearings
1x Campagnolo chainring set Super ROAD Record 13 incl. chainring bolts
1x charging cable
Please note the information on battery regulations.
