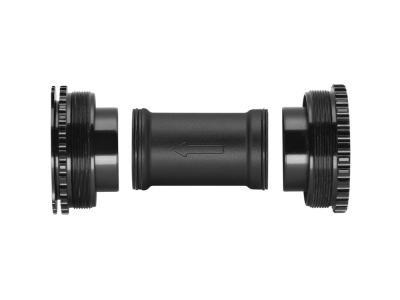

CAMPAGNOLO Bottom Bracket QCK-Tech | ITA

Description

CAMPAGNOLO Bottom Bracket QCK-Tech | ITA

In 1973 Campagnolo introduced the first Super Record groupset - a consistent further development of the Record groupset that set new standards in terms of performance, lightweight construction and exclusivity. More than 50 years later, Campagnolo is continuing this tradition with the Super Record 13 platform and taking it to a new level - developed with the aim of setting a new benchmark in the high-end segment.

More precision, less effort: With the new Quick-Tech technology, the revised bottom bracket of the Super Record 13 enables faster, more intuitive and more precise assembly than ever before. A mechanical locking system is integrated on the non-drive side, which prevents the crank arms with their fixed half-shafts from slipping into the bottom bracket during installation. This ensures that the ceramic bearings pressed onto the crankshaft are precisely centered in the bearing shells so that the two crank halves can then be securely connected to each other via the Hirth gear system. What sounds simple is the result of extensive development work - to the delight of all those who have the pleasure of mounting the ultra-torque crank of the Super Record 13 on their bikes. The aluminum bearing shells have a patented outer seal that effectively protects the bearings from external influences such as water and dirt. In addition, the central sleeve made of glass fiber-reinforced polyamide prevents any internal contamination. This means that the performance of the QCK-Tech bottom bracket remains constant over a long period of time, even under extreme conditions.

For maximum compatibility with common frame standards, the bottom bracket is available in several versions - including BSA, ITA, T47 68, T47 86 and the asymmetric T47a.

Like all components of the electronic groupset, the bottom brackets are manufactured entirely in Italy - an expression of the highest precision, perfect craftsmanship and uncompromising reliability.

Technical data:

Area of application: Road, Gravel
Bearing shell material: Aluminum
Material center sleeve: glass fiber reinforced polyamide
Bottom bracket type: ITA
Bottom bracket shell width: 68 mm
Bottom bracket shell diameter: 34,8 mm
Crank compatibility: all Campagnolo cranksets of the Super Record 13 and Super Record 13 X
Crankshaft diameter: 25 mm (Campagnolo Ultra-Torque)
Tool holder: bottom bracket wrench with 16 cams
Color: black

Weight according to manufacturer: 52g
Weight self-weighed: 54g

Scope of delivery: 1x Campagnolo bottom bracket QCK-Tech | ITA

GTIN:

8057628582052

MPN:

OC02-QCKITA
