ABSOLUTE BLACK Chainring oval 1-speed LK 104 | narrow wide Shimano 12-speed HG+ Cahin | black

Item number:
Product weight: 42 g
Brands: absolute BLACK

74,95 €
MSRP: 74,95 €

including 19% VAT. , excl. Shipping costs / shipping time info


There are variations of this item. Please select the variation you wish.

available from stock
Credit Card, PayPal, Amazon...
Secure Transaction
Refund within 100 Days
Free Return

We can't deliver this item to your chosen country.

Product details | Availability

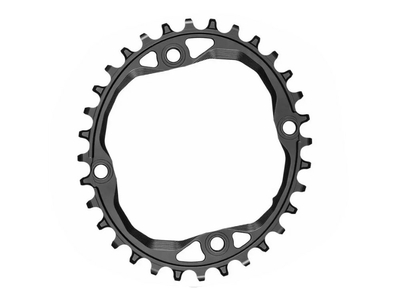

ABSOLUTE BLACK chainring oval 1-fold LK 104 | narrow wide Shimano 12-speed HG + chain | black

The chainrings from Absolute Black are CNC-milled from one piece of aluminum and then anodized. This ensures a stiff and durable chainring. They were developed They were specially developed for the 1x12 Shimano HG + drive. The chainrings have optimized teeth that prevent the chain from jumping off. The principle follows that of the Shimano chainrings. In conjunction with a Shimano Shadow + rear derailleur, which has a greatly increased cage preload, the chain is reliably held in position even without a chain guide.

The ovalization of the chainring increases the performance by varying the drive train and optimizing the resistance. When kicking with the legs, the natural strengths and weaknesses are brought into harmony. In this way, better use of the stronger muscle groups is achieved and a balance is created in the weaker muscles on the way to work (lower stroke).

Technical specifications:

intended use : MTB
Material: aluminum 7075 Txxx
Technology: Narrow Wide
bolt circle diameter : 104 mm (standard)
Attachment: 4-arm spider
Number of teeth: 32, 34 or 36 teeth
Compatibility cranks : all cranks with 104 mm standard bolt circle diameter diameter
Compatibility chain: only 12-speed Shimano HG +
Mounting position: outside
chain line : 48.5 mm (32Z), 50 mm (34 and 36 teeth)
Offset: standard
Adjustment options: none
Range (ovalization): 10.2 - 14.4% (optimized for each chainring size)
Timing (force introduction): 110.5 - 116.3 ° after TDC (OT) (optimized for each chainring size)

Color: Black

Weight according to the manufacturer: 41g (32 teeth), 44g (34 teeth), 53g (36 teeth)
Weight weighed: 42g
(34 teeth)

Scope of delivery: 1x chainring
