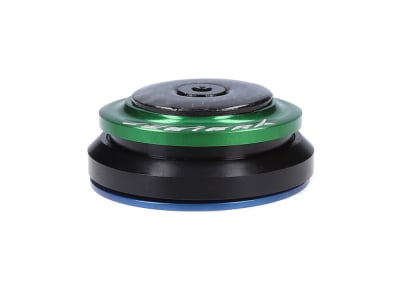

YUNIPER Ultralight headset with aluminum bearing shells | Drop-In Tapered S.H.I.S. IS41.8/28.6 | IS51.8/40 1 1/8" - 1 1/2" | green
With the Yuniper Ultralight headset, you not only lighten your bike, but also give it an individual touch. Thanks to the aluminium bearing shells, this version saves another 15 grams of weight compared to the standard Ultralight version. The carefully milled aluminium parts are very precise and allow easy adjustment of the bearing clearance. Special attention was also paid to the ball bearings. A burnished finish on the balls prevents the formation of corrosion and thus improves the ease of movement and extends the service life. In addition, special seals and a moisture-repellent grease ensure that water and dirt cannot penetrate in the first place. Thanks to the different anodized colors, you can perfectly match the headset to your bike. Another visual highlight is the glossy 3K carbon Ahead cap including black aluminium bolt included in the scope of delivery.
Technical data:
Material: 7075 aluminum, 3K carbon Ahead cap
Type: fully integrated (IS, drop-in)
Steerer tube: 1 1/8" - 1.5"
S.H.I.S. top section: IS41.8/28.6
S.H.I.S. lower part: IS51.8/40
Press-in dimension top Ø: 41.8 mm
Top offset: 6.5 mm
Press-in dimension bottom Ø: 51.8 mm
Offset bottom: 8 mm
Outer diameter top: 41.8 mm
Outer diameter bottom: 51.8 mm
Overall height top: 5.5 mm
Overall height bottom: 1 mm
Bearing: Industrial angular contact ball bearing, double sealed
Color: green
Weight according to manufacturer: n.a.
Weight self-weighed: 52g (headset without accessories); 4.9g (carbon Ahead cap and Ahead bolt); 6g (claw)
Scope of delivery:
1x upper part incl. bearing IS41.8/28.6
1x lower part incl. bearing and fork cone IS51.8/40
1x carbon Ahead cap incl. bolt and claw
