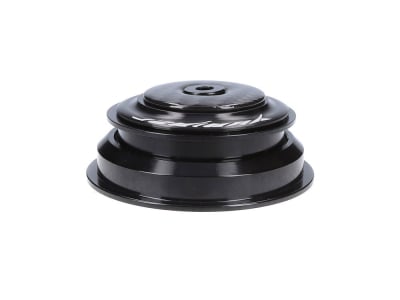

YUNIPER Ultralight headset Semi-Integrated Tapered S.H.I.S. ZS44/28.6 | ZS55/40 1 1/8" - 1 1/2" | black
The Yuniper Ultralight is a lightweight semi-integrated tapered headset for tapered steerer tubes.
The seals used ensure a long service life for the high-quality bearings. Thanks to precise manufacturing, headset play can be completely eliminated!
incl. carbon cover cap, aluminum screw and claw
Technical data:
Material: 7075 aluminum, steel, 3K carbon Ahead cap
Construction: semi-integrated
Steerer tube: Tapered 1 1/8" - 1.5"
S.H.I.S. top section: ZS44/28.6
S.H.I.S. lower part: ZS55/40
Press-in dimension top Ø: 44 mm
Top offset: 8 mm
Press-in dimension bottom Ø: 55 mm
Offset bottom: 9.5 mm
Outer diameter top: 50 mm
Outer diameter bottom: 61 mm
Overall height top: 3 mm
Overall height bottom: 1 mm
Bearing: Industrial angular contact ball bearing, double sealed
Color: black
Weight according to manufacturer: 85g (headset without accessories), 12g (carbon Ahead cap, Ahead bolt and claw)
Weight self-weighed: 85g (headset without accessories); 4.9g (carbon Ahead cap and Ahead screw); 6g (claw)
Scope of delivery:
1x upper part incl. bearing ZS44/28.6
1x lower part incl. bearing and fork cone ZS55/40
1x Ahead cap 3K-Carbon incl. screw and claw
