Description
YUNIPER headset R3CORD Ultralight SHIS ZS44 / 28.6 | ZS44 / 30
This lightweight headset from Yuniper will be an eye-catcher on your bike. The beautifully and delicately processed aluminum bearing shells adapt perfectly to any frame. The low overall height saved a lot of weight. But the inner values can also be excessive. Yuniper's own ball bearings stand for durability and ease of movement. The balls were hardened in a special process and coated with a special protective layer. This makes them particularly resistant to external influences and protected against corrosion. They can also be exchanged if necessary.
Technical specifications:
Material: aluminum 7075, steel, 3K carbon
Construction: semi-integrated
Steerer: 1 1/8 "
SHIS top: ZS44 / 28.6
SHIS lower part: ZS44 / 30
Press-in dimension above Ø: 44 mm
Offset above: 5 mm
Press-in dimension below Ø: 44 mm
Inset depth below: 5 mm
Outside diameter above: 50 mm
Outside diameter below: 50 mm
Construction height above: 2 mm
Construction height below: 6 mm
bearing : industrial ball bearings, double-sealed
Color: black, red, blue, orange, gold
Weight according to the manufacturer: 49g (only headset), 61g (including cap, claw, screw)

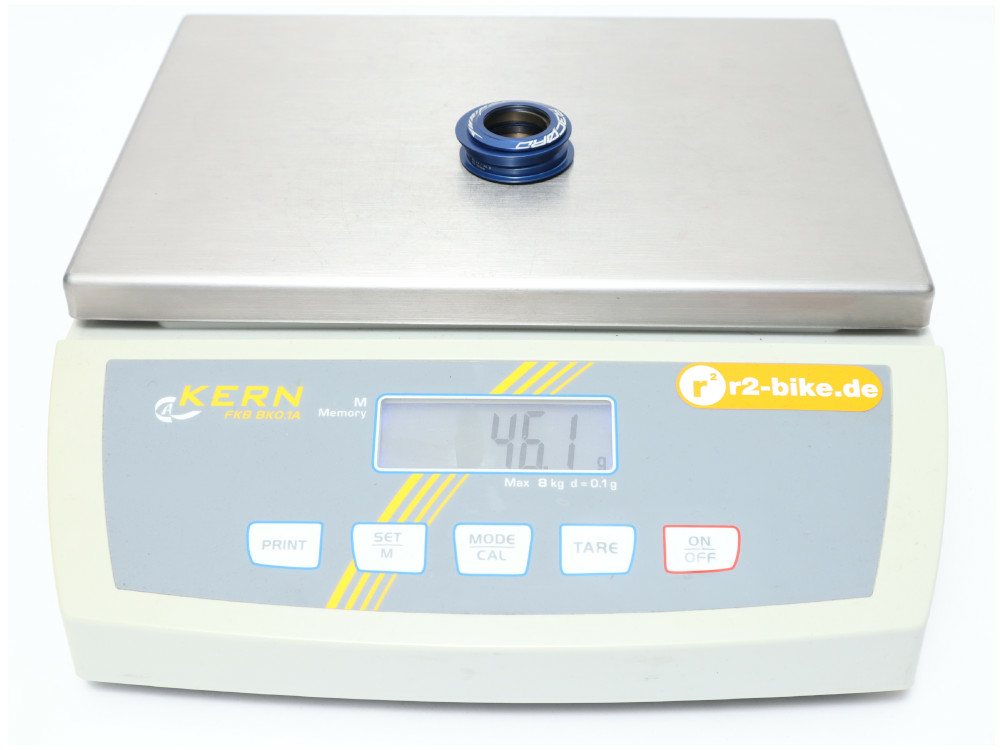

Weight weighed: 46g (only headset), 57g (incl.cap, claw, screw)
Scope of delivery:
1x upper part including bearing ZS44 / 28.6
1x lower part including bearing and fork cone ZS44 / 30
1x Ahead cap 3K-Carbon incl. Screw and claw
