Wheelset 28" Disc GRV | Syntace Road Straightpull Center Lock Hubs | Duke Gravel Carbon Rims

Item number:
Product weight: 1266 g
Brands: r2-bike

from 1.447,50 €
MSRP: 1.669,44 €
You save 13,29%, that is 221,94 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

handmade - in about 4 - 6 weeks
Configure now

We can't deliver this item to your chosen country.

Syntace Front Hub Straightpull Center Lock
Syntace Front Hub Straightpull Center Lock
  • Brake disc mount: Center Lock
    Spoke type: straight pull (straight)
    Storage: 2x industrial deep groove ball bearings
    Color: Black
    Weight: 114g

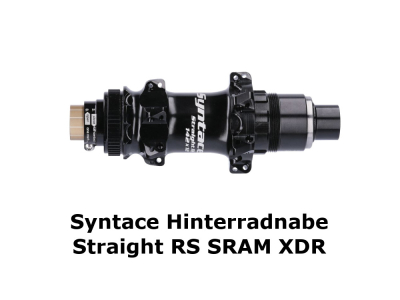

Syntace Rear Hub Straightpull Center Lock
Syntace Rear Hub Straightpull Center Lock
  • Brake disc mount: Center Lock
    Spoke type: straight pull (straight)
    Storage: 4x industrial deep groove ball bearings
    Freewheel type: 2 tooth lock washers, 24 grids
    Freewheel compatibility: 12-speed SRAM XDR, SRAM XD only with adapter
    Color: Black
    Weight: 218g

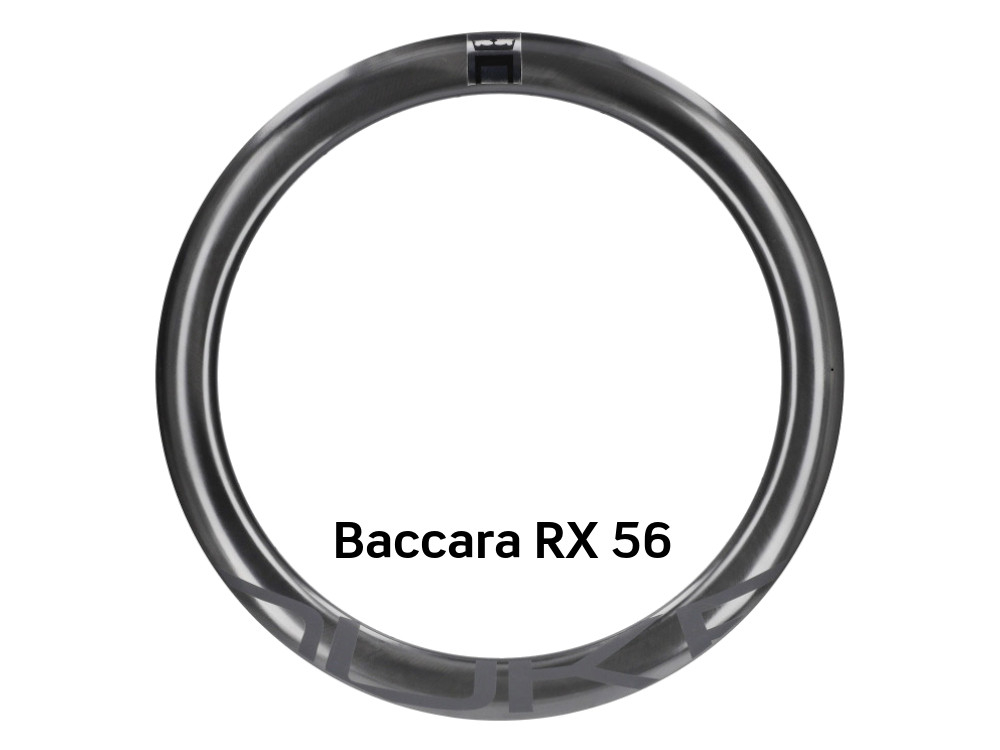

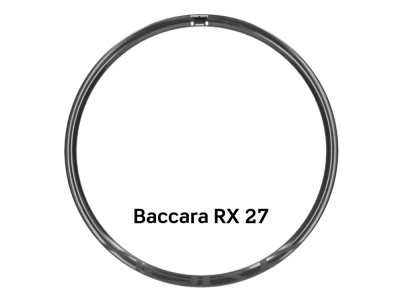

Duke Rims Carbon Gravel
Duke Rims Carbon Gravel
  • Intended use: Gravel GRV, Roadbike RR
    ETRTO: 622x25
    Inner width: 25 mm
    Outside width: 32 mm
    Rim height: 50 mm
    Offset: no
    recommended tire width: 28 - 50 mm
    maximum tire pressure: 4 bar
    maximum system weight: 120 kg (driver, bike, clothing and possibly luggage)
    Color / finish: UD Carbon / black matt
    Weight: 420g


    Application: Road, Gravel, Cross Country, Trail
    Weight incl. nipple: approx. 5.45g (1 piece)

    The wing spoke made of cold drawn Sweden steel has an elliptical shape which takes advantage of the flat, light and aerodynamically more favorable but weak aero spoke and the stronger but less aerodynamic and heavy classic round spoke. This gives it the diameter necessary for torque transmission and at the same time favorable and superior aerodynamic properties with low weight!

Colour Spoke Nipples
Colour Spoke Nipples
  • The nipples are made of brass in order to achieve the best possible and long-lasting result in terms of color. The robust material is insensitive to corrosion and does not stick to the thread of your spokes, so that re-centering is still possible without any problems even after years of use. In addition, they are neither attacked nor damaged by any sealing milk that may have got into the rim well.

    Weight per piece: 1.0g

Rim Tape | Tubeless Kit
Rim Tape | Tubeless Kit
Your configuration
Product details


Wheelset 28" Disc GRV | Syntace Road Straightpull Center Lock hubs | Duke Gravel Carbon rims

intended use : Gravel GRV

This light yet stable wheel set is the first choice for dedicated gravel or cross bikers. The balanced selection of components guarantees you high reliability and a long service life.

The heart of these wheelsets are the Syntace hubs. These combine the finest turning and milling skills, are simple in appearance, but have superior inner values.
The hub body is equipped with stable precision deep groove ball bearings, which have a special grease filling for perfect protection against corrosion and outstanding durability. The 17 mm oversize axle ensures maximum rigidity with minimum weight. An additional, double sealing washer in front of the ball bearing prevents the ingress of spray water. The infinitely variable MicroAdjust adjustment cap allows the axial hub play to be adjusted quickly and easily.

The carbon rims developed and manufactured by Duke for gravel use are made for tough off-road use with their large internal width and the high approved system weight. They will definitely not let you down. You have the option of driving very wide tires, which increases comfort and grip. They are also tubeless compatible, which reduces the risk of punctures.

Impeller construction at R2-Bike

Our wheels are assembled entirely by hand by our wheel builders. During the entire construction, it is important that not only the concentricity is right, but also that the spoke tension is as even as possible. The special care allows us to give a lifetime guarantee against broken spokes, as long as this is not caused by violence!

You will also receive the following services with our wheels:

A universal impeller bag for all common sizes.
A spare spoke + nipple in all required spoke lengths to be able to repair the impeller at short notice even after an accident.
A free initial check of the impeller, where the resulting work is completely free! Only shipping costs are charged.
A crash replacement promise. If your wheel is damaged due to force majeure, we will rebuild your wheel once. We grant a 100% discount on all labor costs and only charge for the material!

Technical specifications:

intended use : Gravel GRV
Wheel size: 28" (ETRTO: 622 x see detailed description)
Rim Type: Clincher (clincher and folding)
Brake type: disc brake
Brake disc mount: Center Lock


1266g (lightest variant: 12x100 mm + 12x142 mm, SRAM XDR, World Runner 27, Sapim CX-Ray)
1500g (heaviest variant: 12x100 mm + 12x142 mm, Shimano/SRAM Road, World Runner 50, Sapim Race)

Due to manufacturing variations in all components, deviations in weight are possible. The information is usually determined without rim tape, valves and decals/rim stickers.

The specified delivery time refers to the usual time it takes to assemble the wheelset and does not reflect the availability of the individual parts.

Scope of delivery:

1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
