WOLFTOOTH chainring E-Bike Direct Mount Drop-Stop ST 12-speed for Shimano EP8
Direct mount chain ring for Shimano e-bike motors.
In addition to the clean look, a direct mount chainring offers greater rigidity at a low weight. Wolftooth's drop-stop technology allows you to omit a chain guide. This is made possible by special teeth that alternate between narrow and wide. For reliable chain guidance, we recommend using a rear derailleur with increased cage tension. Shimano offers these under the name Shadow+. SRAM calls it Type 3.0. The chainring is CNC-milled from one piece of 7075 aluminum and then anodized for maximum strength and low wear values.
Technical specifications:
intended use : e-bike
Compatibility drive: Shimano EP8, E8000 and E7000
Material: Aluminum 7075-T6
Technology: Drop Stop ST
Mounting: Shimano Steps Direct Mount
Number of teeth: 32 or 34 teeth
Compatibility cranks : -
Compatibility chain: Shimano 12-speed Hyperglide+ and 12-speed KMC
Mounting: single
chain line : 55 mm
Offset: -
Adjustment options: none
Color: Black

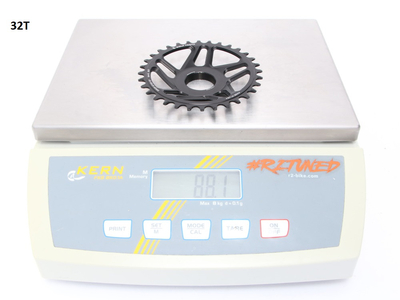

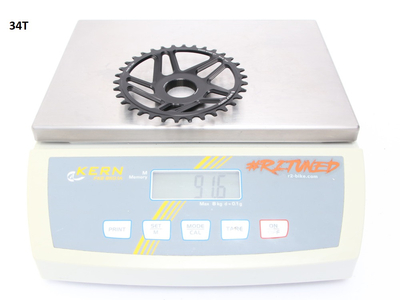

Weight according to the manufacturer: 32 teeth - 87g, 34 teeth - 92g
Weight weighed: 32 teeth - 88g, 34 teeth - 92g
Scope of delivery: 1x chain ring WOLFTOOTH E-Bike Direct Mount Drop-Stop ST 12-speed for Shimano EP8
