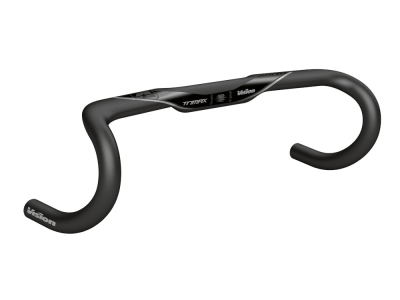

VISION Handlebar Trimax Aero | 31.8 mm

Description

VISION Handlebar Trimax Aero | 31.8 mm

The list of Vision's partners is high-caliber and long. Visma lease a bike, Arkea, EF Education, Bahrain Victorious, Astana and Israel Premier Tech, to name just a few of the big names in racing. The reasons for Vision are obvious: access to top athletes who provide feedback and testing. This is how Vision finds out what the riders want and defines their goals for what should be delivered. This is fundamentally important in order to drive research and development forward and live up to its own standards. This defines the passion for the development of new products or the creation of design, materials and manufacturing processes. All of this is the seed to produce a technically superior product in the end. The result is a high-end product at a competitive price.

The aluminum handlebars are aerodynamically and ergonomically shaped. A natural arm position is achieved via a 7 degree forward bend, also known as a frontsweep. The aero shape of the handlebars also helps to create a comfortable contact surface for the ball of your hand.
The Trimax Aero combines ergonomics and aerodynamics with the frontsweep, the flattened aero top bar and the 4° flare.
In addition, 310 g (according to the manufacturer, width 420 mm) is a very good weight for an aluminum handlebar, even after weighing it was 316 g with the same dimensions.

ACR (Aerodynamic Cable Routing)
Nothing stands in the way of your tidy cockpit with these handlebars. With a compatible headset and stem, you have the option of fully integrating all cables and lines. Better aerodynamics, plus looks!

SCR (Semi-intecradt Cable Routing)
If you don't have the right stem or compatible headset, that's no problem. The Vision Trimax Aero is also designed for semi-integrated cable routing and gives you the opportunity to make your cockpit more aerodynamic and tidy.

Technical specification:

Area of application: Road bike, triathlon
Material: Aluminum
Top link shape: aero
Lower link shape: compact
Cable routing: ACR, SCR
Handlebar width top link (outer - outer): 400 mm, 420 mm. 440 mm
Handlebar width lower link (outer - outer): 420 mm, 440 mm, 460 mm
Reach: 90 mm
Drop: 125 mm
Front sweep: 7°
Flare: 4°
Clamp diameter: 31.8 mm
max. system weight: n.a.
max. tightening torque: n.a.
Finish: shot peened, black anodized
Color: black

Weight according to manufacturer: 310g (420 mm)
Weight weighed: 318g (440 mm)

Scope of delivery:

1x VISION handlebar Trimax Aero | 31.8 mm
