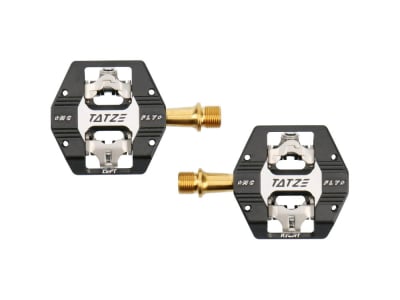

TATZE Pedals MC-FLY Titanium | black/silver
TATZE MC-FLY - maximum performance with minimum weight!
maximum performance!
The MC-FLY is a very light pedal with a large contact surface for perfect contact between pedal and shoe. The wide range of applications extends from gravel racing to hard MTB downhill. The perfect symbiosis gives you maximum control over your bike. The Tatze MC-FLY is already being used successfully in the Downhill European & World Cup, as shown by Kevin Maderegger's victory in the IXS Europedal Downhill Cup in Kranjska Gora in 2019.
Compatible!
The MC-FLY is SPD-compatible, offers enough freedom of movement for an active riding style with a 5° float and, with a release angle of 12°, leaves enough room to always be in control of the situation between clicking in and out. Of course, the release hardness can also be adjusted, which can be read off the mechanism.
innovative!
A particularly important feature are the 4 optional pins arranged around the click mechanism. These pins can be used to adjust the contact pressure between the shoe and pedal. If you have too much play, simply insert the pins and lock the height until the contact pressure is perfect.
High-quality bearings and long-lasting!
When it comes to bearings, the MC-FLY leaves nothing to chance. A double-sealed and very wide needle bearing, a double-sealed industrial bearing and a double seal make the MC-FLY particularly durable and resistant.
Developed and tested in Tyrol/Austria!
Technical data:
Area of application: Gravel, MTB
Pedal axle material: Titanium
Pedal body material: 6061 T6 aluminum
Material pins: Steel
Height: 17 mm (without pin)
Pedal contact area: 67 mm x 56 mm
Number of pins: 4 pins per pedal side
Bearings: multi-sealed needle bearings and deep groove ball bearings
Freedom of movement: +/- 5°
Release force: 4 - 12 Nm adjustable (additional adjustable contact pressure via optional pins)
Release angle: 12°
Q-factor/axle length: 55 mm
Shoe compatibility: Shimano SPD system
Weight limit: none
Color: black/silver
Weight according to manufacturer: 298g
Weight self-weighed: 306g
Scope of delivery:
1x pair of TATZE pedals MC-FLY Titan | black/silver
1x pair of pedal cleats
16x pins
1x Allen key
