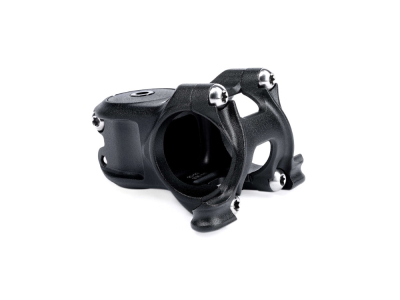

SYNTACE Stem Megaforce3.5 Twinfix 35,0 mm 50 mm

Description

SYNTACE stem Megaforce3.5 Twinfix 35.0 mm

With the Megaforce3.5 stem, Syntace has once again outdone itself. Absolutely stable, high-quality workmanship and with a contemporary 35 mm clamping diameter, it is the perfect handlebar mount for anyone who likes to let it rip.It also scores points with the option of internal cable routing, so that cables from displays or control units, for example, can be discreetly routed inside directly from the handlebars. This makes the Megaforce3.5 fully e-bike compatible.

Lightweight titanium bolts as standard
The Megaforce3.5 stem is already tuned ex works. The high-quality Syntace titanium bolts (M5x16) reduce the weight and are highly resistant to corrosion. They also have a high tensile strength and are ideal for upgrading safety-relevant parts.

Special Syntace 200° head
The risk of damage in the clamping area is particularly high with carbon handlebars. Thanks to the special 200° head, Syntace reduces the punctual loads at this point. Nevertheless, the handlebar is optimally embedded and is clamped securely and gently using four bolts.

Twinfix mount
With the Twinfix standard, Syntace has created a clever mounting option for accessories such as headlights or bike computers. Their specific brackets are mounted from below on the attached eyelets, where they are ideally centered. This also makes your cockpit look tidier and leaves space on the handlebars for additional equipment.

VR-3 tested
At Syntace, no product reaches the customer without having passed the world's toughest test run according to test standard DH 2002.4 on their VR-3 machine. This is why they grant a 10-year guarantee on their products if they are installed and used in accordance with the installation instructions.

Technical data:

Area of application: MTB, trail, enduro, downhill, e-bike
Stem material: Aluminum 7075-T6
Bolt material: Titanium
Handlebar clamp Ø: 31.8 mm
Steerer tube diameter: 1 1/8"
Lengths: 40 mm, 50 mm
Angle: 0°
Steerer clamp height: 35.0 mm
Handlebar clamping width: 48.5 mm
Tool holder: T25 Torx
Max. permissible torque: 8 Nm
Weight limit: none
Finish: Shotpeen Black Anodized
Color: black

Weight according to manufacturer: 124g (40 mm)
Weight weighed: 125g (40 mm), 130 mm (50 mm)

Scope of delivery: 1x SYNTACE stem Megaforce3.5 Twinfix 35.0 mm
