Description

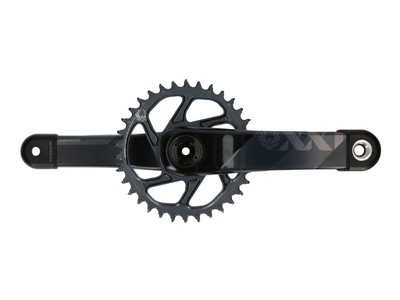

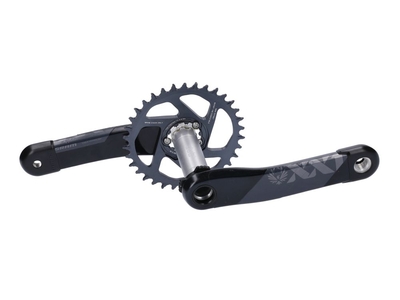

SRAM XX1 Eagle DUB crank 1x12 | X-SYNC 2 SL Direct Mount chainring 34 teeth BOOST | lunar gray
After the Eagle components have established themselves on the market, the Americans of SRAM 2018 are coming with the next big coup for the further optimization of mountain bike drives. DUB technology not only simplifies the combination of crankshaft and bottom bracket, it also increases the durability of the bottom bracket. SRAM DUB cranks have a uniform shaft diameter of 28.99 millimeters. Thanks to various variants of the completely redesigned and better-sealed DUB bottom bracket, the cranks are compatible with all common bottom bracket housings. The aluminum crankshafts were also revised, which reduced the weight of the DUB crank sets compared to their predecessors.
Through the use of the carbon tuned manufacturing process, the wall thickness of the XX1 Eagle DUB crank could be selected at all points so that it has a very high rigidity and is still an absolute lightweight. The crank is supplemented by the new X-Sync 2 SL Direct Mount chainrings. These impress with a significantly quieter running of the chain and better self-cleaning in muddy conditions. With the proven alternating thick-thin tooth profile, which is matched to the XX1 Eagle chain, the X-Sync 2 chainrings always hold the chain securely in place. The crank is delivered with a 34 tooth chainring. You can find retrofit chainrings with 30 to 38 teeth in our shop. The crank is available with a crank length of 170 millimeters or 175 millimeters.
NOTE: You can find the right DUB bottom bracket and other chainrings for your frame in our shop.
Technical specifications:
Material crank: carbon
Crankshaft material: aluminum
bolt circle diameter : none, direct mount
Crank arm length: 170 or 175 mm
Chainring: 34 teeth, X-SYNC 2 SL Direct Mount chainring, 3 mm offset (BOOST) | lunar gray
axle type : SRAM DUB
Crankshaft diameter: 28.99 mm
Bottom bracket compatibility: SRAM DUB BSA73, DUB PressFit89 / 92, DUB PressFit30, DUB BB30
chain line : 52 mm (for 148 mm BOOST rear hubs)
Q factor: 168 mm
Color crank: black
Color logos: gray
Chainring color: lunar gray
Weight according to the manufacturer: 422g (175 mm, 34 teeth)

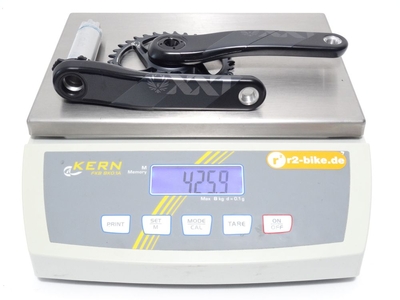

Weight weighed: 426g (175 mm, 34 teeth)
Scope of delivery: 1x crank incl. 34Z X-SYNC 2 SL Direct Mount chainring | lunar gray + crank boots
