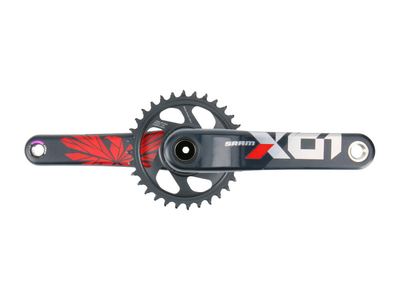

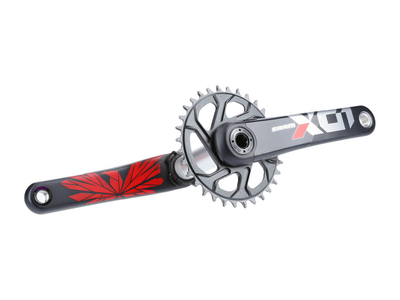

SRAM X01 Eagle DUB crank 1x12 | X-SYNC 2 Direct Mount chainring 32 teeth BOOST | Red
By using the carbon tuned manufacturing process, the wall thickness of the X01 Eagle DUB crank could be chosen at all points so that it has a very high rigidity and is still an absolute lightweight. In contrast to the XX1 Eagle, the X01 crank is designed to be even more robust in order to be able to withstand the stresses of tough enduro use. The crank is complemented by an X-Sync 2 Direct Mount chainring. This impresses with a significantly smoother running of the chain and better self-cleaning in muddy conditions. With the proven alternating thick-thin tooth profile, it holds the chain securely in place. The crank is delivered with a 32 tooth chainring. The bare aluminum teeth still look like new even after thousands of kilometers, as unsightly, worn areas in the anodising are not possible. You can find retrofit chainrings with 30 to 38 teeth in our shop.
The DUB technology not only simplifies the combination of crankshaft and bottom bracket, it also ensures that the bottom bracket is more durable. SRAM DUB cranks have a uniform shaft diameter of 28.99 millimeters. Thanks to different versions of the completely redesigned and better sealed DUB cranks are compatible with all common bottom bracket housings. The aluminum crankshafts have also been revised, which has made it possible to reduce the weight of the DUB crank sets compared to their predecessors.
NOTE: You can find the right DUB bottom bracket and other chainrings for your frame in our shop.
Material crank: carbon
Material crankshaft: aluminum
bolt circle diameter : none, direct mount
Crank arm length: 165, 170 or 175 mm
Chainring: 32 teeth, X-SYNC 2 Direct Mount, 3 mm offset (BOOST)
Compatibility drive: 1x12 (SRAM Eagle) or 1x11
axle type : SRAM DUB
Crankshaft diameter: 28.99 mm
Compatibility bottom bracket: SRAM DUB BSA73, DUB PressFit89 / 92, DUB PressFit30, DUB BB30
chain line : 52 mm (for 148 mm BOOST rear hubs)
Q factor: 168 mm
Color handle: black
Color logos: gray-red
Color of chainring: lunar gray
Weight according to the manufacturer: 471g (175 mm, 32 teeth)
Weight weighed: 461g (170mm, 32 teeth)
Scope of delivery:
1x crank incl. 32T X-SYNC 2 direct mount chainring
1x pair of crank boots
