Description
SRAM X0 Eagle AXS Transmission E-Bike Group | BCD 104 mm chainring 36 teeth
Eagle Transmission is a system for your mountain bike drive train that sets new standards in function and reliability.
All components are built around the constant point of every bike - the center of the wheel. All unnecessary parts have been eliminated in order to carry out the elementary functions to perfection.
The T-Type system is precisely matched to work perfectly and is not compatible with existing, older Eagle drives.
The X0 Eagle AXS transmission e-bike groupset is SRAM's answer to the demand for a robust and reliable drive for your electrified enduro adventures. The X0 Eagle AXS Transmission System takes a holistic approach to shifting your e-bike. A concept developed as a whole system, which is perfectly synchronized and offers you an excellent feeling when driving. It doesn't matter whether you're relaxing on the after-work lap or fighting for the last second on the enduro stages of the world.

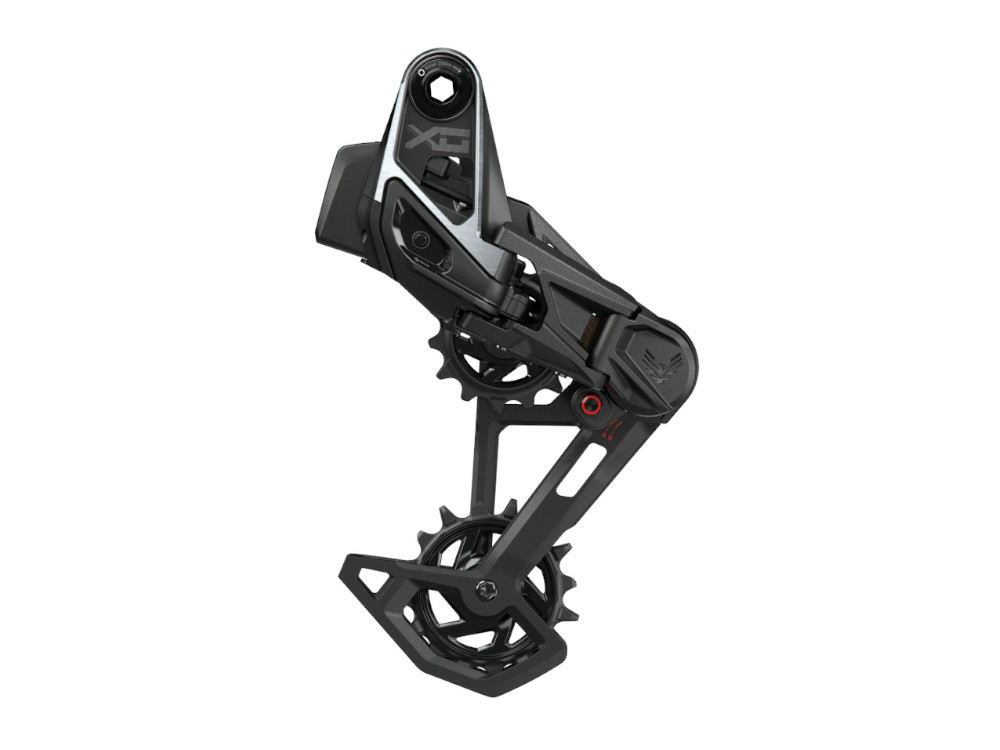

rear derailleur
The X0 Eagle AXS Transmission rear derailleur is robust thanks to the direct mount interface without derailleur hanger and has well-known technologies such as the overload clutch and the well-known AXS coupling process.
cassette
With the X0 cassette, shifting under load is made possible by a combination of X-SYNC technology and optimized cassette mapping of the shift gates. Even under the highest load, the X0 Eagle Transmission sprocket guarantees seamless shifting.

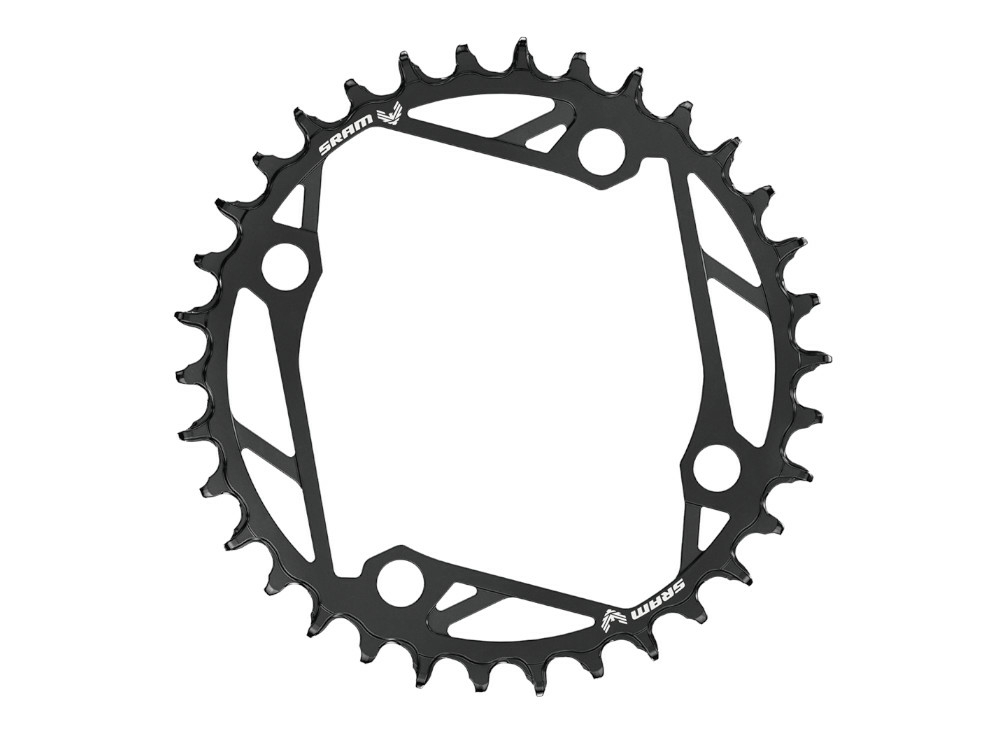

Chainring 104mm BCD
The engineers at SRAM have designed a chainring that counteracts the high forces and wear that occur. The T-Type design of the teeth keeps your chain in place in every situation. The focus during development was on optimal durability, but also the smoothest possible running of your chain was realized. The chainring is compatible with both T-Type drives and older generation Eagle drives.
Chain
With the optimized X0 Eagle Transmission Flattop chain, the word shifting performance takes on a new meaning. It was specially developed to optimize Eagle Transmission drives and has a unique, flat top. This shape not only maximizes shifting performance and stability, but also gives your bike a contemporary look. The chemical nickel plating of the lugs with subsequent PVD coating in Dark Polar protects against corrosion and reduces wear.
controllers
The AXS Pod Ultimate features a two-button "click and fire" design, turning every command from the rider into a much more personalized experience for all your AXS components.
Technical specifications:
Material cassette: aluminum, steel
Material Pod Controller: aluminum, plastic
Material rear derailleur: aluminum
Chain ring material: steel
Gear steps: 12
Crank Length: -
Chainring: 36 teeth
chain line : -
Q factor: -
Position controller: right
Gradation: 10,12,14,16,18,21,24,28,32,38,44,52
Gear ratio: 520%
Compatibility freewheel: SRAM XD
Compatibility rear derailleur: SRAM Eagle Transmission 10-52 teeth
Cassette and chain color: black, dark polar
Color rear derailleur and controller: black
Weight according to the manufacturer: kA
Weight weighed:
Scope of delivery: SRAM X0 Eagle AXS Transmission E-Bike Group | BCD 104 mm chainring 36 teeth consisting of
1x SRAM X0 AXS Eagle Transmission rear derailleur including battery
1x 104 mm BCD chain ring | 36 teeth
1x SRAM X0 transmission cassette
1x SRAM X0 Eagle Transmission Flattop Chain, Dark Polar
1x Pod Ultimate Controller
1x charger incl. USB cable
