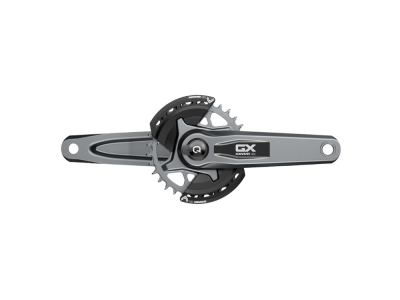

SRAM GX Eagle Transmission Power Meter DUB crank | 55 mm chainline 174 mm Q-factor | gray
Eagle Transmission is a system for your mountain bike drivetrain that sets new standards in function and reliability.
All components are built around the constant point of every bike - the center of the wheel. All unnecessary parts have been eliminated in order to perform the elementary functions to perfection.
The T-Type system is precisely matched for perfect function and is not compatible with existing, older Eagle drivetrains.
Here is the little brother of SRAM's top groupsets: the GX Eagle Transmission drivetrain components bring competition-proven high-end performance at an affordable price directly to your bike.
The GX DUB Transmission crankset offers you uncompromising stability to effortlessly defy even the toughest days in the bike park. Two independently mountable bashguards made of lightweight composite material protect the chainring and chain from contact with the ground. So you can concentrate on what's really important: the trail and your downhill line. And to ensure that everyone can find their crank, the GX-Power Meter crank is available in 5 lengths from 155 mm.
In this power meter version of the GX crank, the measuring electronics are well protected inside the shaft. The measurement takes place on the left-hand side and is transmitted to your compatible bike computer in real time with an accuracy of +/- 3%.
The system is optimized for use on bikes with a 55mm chainline. With this standard, the chainring sits further out to generate space for wider tires in the rear triangle. The resulting large chain skew is very well compensated for thanks to the special design of all drive components.
FEATURES
- Forged aluminum for uncompromising stability
- Chainring with a unique look, integrated bashguard and perfect function
- Compatible with Flight Attendant
- Measuring accuracy +/- 3 %
- Easily replaceable AAA lithium battery for up to 400 operating hours
- waterproof according to IPX7
Technical data
Crank material: Aluminum
Crankshaft material: Aluminum
Bolt circle: none, SRAM 8-hole interface
Crank arm length: 155, 160, 165, 170 or 175 mm
Chainring: 32 teeth T-Type chainring
Shaft standard: SRAM DUB MTB Wide
Crankshaft diameter: 28.99 mm
Bottom bracket compatibility: SRAM DUB MTB Wide BSA73, PressFit89/92, PressFit30, BB30
Chainline: 55 mm
Offset chainring: 3 mm
Q-factor: 174 mm
Crank color: Dark Polar (grey)
Color logos: black/grey
Finish: matt
Weight according to manufacturer: n.a.
Weight self-weighed: -
Scope of delivery: 1x SRAM GX Eagle Transmission Power Meter DUB crank | 55 mm chainline 174 mm Q-factor | gray
