Description

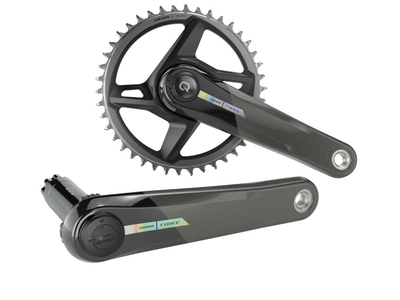

SRAM Force 1 DUB Wide AXS Quarq Powermeter Crank Carbon Road 1-speed Iridescent | direct mount
Visually unobtrusive, with a touch of shine - the new Force group with its iridescent look manages this balancing act. Technically, the group builds on the previous generation, with some upgrades from the RED top group and new technologies. The great versatility and adaptability of the Force group has remained the same. From the 1x XPLR setup for gravel bikes to the thoroughbred racing bike with 2x drive, the Force offers many well thought-out gear ratios. With the proven AXS standard, you can adapt the shifting behavior to your needs and integrate AXS components from other groupsets or additional shifters into your setup.

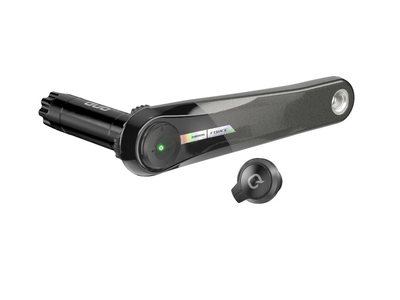

Introduced with the current Rival AXS group, the new Force Carbon crank also has a crankshaft-based power meter. Due to the complete integration of the measuring technology in the crankshaft, the power meter crank has a particularly clean look. The power of the left leg is measured, from which the overall power is calculated using an algorithm. Thanks to the many years of experience of the power meter specialists from Quarq, the measurement is carried out with a very high level of reliability and accuracy. The battery life of up to 400 hours should cover a season's operation for many bikers. Should you ever run out of power, the lithium AAA battery can easily be replaced by yourself. For use in adverse weather conditions, the power meter unit is waterproof according to the IPX7 standard. In contrast to other power meters, the additional weight of the power meter unit is pleasantly low at 40 grams.
The Force carbon crank arms combine low weight and high rigidity. In the WIDE version, the crank has a chain line of 47.5 millimeters and offers extra tire clearance on Gravel bikes. With the DUB-Wide crankshaft, the crank is compatible with all common bottom bracket shells with the appropriate DUB-Wide bottom bracket.
Technical specifications:
intended use : Gravel, Cyclocross
Performance measurement system: crankshaft measurement system | one-sided measurement
Connectivity: Bluetooth and ANT+
Battery: Lithium AAA
Battery life: up to 400 hours
Material crank arms: UD carbon
Material crankshaft: aluminum
Crankshaft diameter: 28.99 mm
Crank Lengths: 165; 167.5; 170; 172.5; 175 or 177.5mm
Spider/chainring mount: Direct Mount | SRAM 8 bolt
Chain ring material: aluminium
Chainring: 40 teeth
chain line : 47.5mm
Q factor: 150 mm
Bottom bracket compatibility: SRAM DUB Road Wide (optional, not included)
Compatibility chains: SRAM 12-speed flat top; SRAM Eagle (only in combination with Eagle cassette and rear derailleur)
Compatibility rear triangle: 142 mm or 148 mm BOOST
Rider weight: na
Colour: glossy black, iridescent
Weight according to the manufacturer: kA
Weight weighed: 644g (172.5mm)
Scope of delivery: SRAM Force 1 DUB Wide AXS Quarq power meter crank Carbon Road 1-speed Iridescent | Direct mount without bottom bracket
Assembly instructions: SRAM eTap AXS group DE | EN | f
